Product Summary
The TD62593AP is an 8ch single driver comprised of eight NPN transistor arrays. Applications include relay, hammer, mlamp and display(LED) drivers.
Parametrics
TD62593AP absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 50V; (2)Collector-base voltage, VCBO: 50V; (3)Clamp diode reverse voltage, VR: 50V; (4)Collector voltage, IC: 200mA/ch; (5)Input voltage, VIN: -0.5 to 30V; (6)Input current, IIN: 25mA; (7)Power dissipation, PD: 0.96/1.47W; (8)Operating temperature, Topr: -40 to 85℃; (9)Storage temperature, Tstg: -55 to 150℃.
Features
TD62593AP features: (1)Output current 200mA; (2)High sustaining voltage output 50V; (3)Low saturation voltage VCS=0.8V; (4)@Iout=150mA inputs compatible with various type logic; (5)Package type-AP: DIP-18pin; (6)Package type-AF: SOP-18pin.

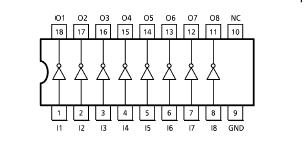

Diagrams
