Product Summary

The DS1963S-F5 Monetary iButton with SHA-1 Function is a rugged 4 kbit read/write data carrier that can be easily accessed with minimal hardware. Its NV memory acts as a localized database for public as well as protected data belonging to the owner of the device and the environment in which it is used. An integrated 512-bit SHA-1 engine can be activated to compute 160-bit message authentication codes (MAC) based on information stored in the device.

Parametrics

Absolute maximum ratings: (1)IO Voltage to GND: -0.5V, +6V; (2)IO sink current: 20mA; (3)Temperature Range: -40℃ to +85℃; (4)Junction Temperature: +150℃; (5)Storage Temperature Range: -25℃ to +50℃.

Features

Features: (1)4096 bits of read/write nonvolatile (NV) memory organized as 16 pages of 256 bits each; (2)Eight memory pages with individual 64-bit secrets and 32-bit read-only non rolling-over page write cycle counters; (3)Secrets are write-only and have their own individual write cycle counters; (4)On-chip 512-bit SHA-1 (FIPS 180-1, ISO/IEC 10118-3) engine to compute a 160-bit Message Authentication Codes (MAC) and generate page secrets; (5)Device can operate as roaming iButton or as coprocessor for a host computer.

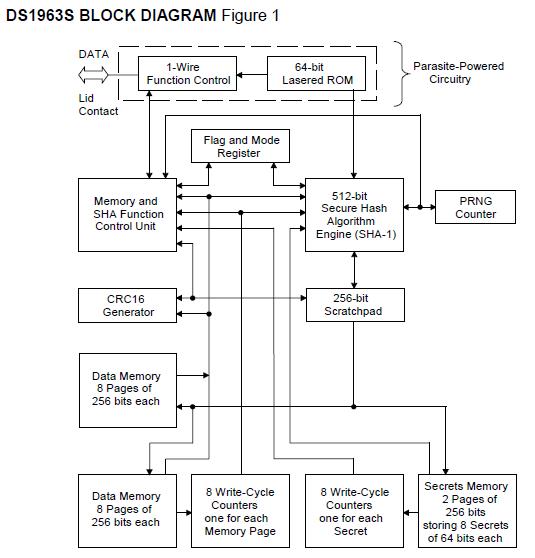

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DS1963S-F5
DS1963S-F5

Maxim Integrated Products

iButtons

Data Sheet

Negotiable
DS1963S-F5+
DS1963S-F5+

Maxim Integrated Products

iButtons SHA iButton

Data Sheet

0-1: $10.73
1-25: $7.16
25-50: $5.31
50-100: $5.16
