Product Summary
The TMS320VC5501PGF300 fixed-point digital signal processor (DSP) is based on the TMS320C55x DSP generation CPU processor core. The C55x DSP architecture achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The CPU supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses, and additional buses dedicated to peripheral and DMA activity. These buses provide the ability to perform up to three data reads and two data writes in a single cycle. In parallel, the DMA controller can perform data transfers independent of the CPU activity.
Parametrics
Absolute maximum ratings: (1)Supply voltage I/O range, DVDD: -0.3 V to 4.0 V; (2)Supply voltage core range, CVDD: -0.3 V to 2.0 V; (3)Input voltage range, VI: -0.3 V to 4.5 V; (4)Output voltage range, Vo: -0.3 V to 4.5 V; (5)Operating case temperature range, TC: -40℃ to 85℃; (6)Storage temperature range Tstg: -55℃ to 150℃.
Features
Features: (1)High-Performance, Low-Power, Fixed-Point TMS320C55x Digital Signal Processor (DSP); (2)Instruction Cache (16K Bytes); (3)16K x 16-Bit On-Chip RAM That is Composed of Four Blocks of 4K × 16-Bit Dual-Access RAM (DARAM) (32K Bytes); (4)16K × 16-Bit One-Wait-State On-Chip ROM (32K Bytes); (5)8M × 16-Bit Maximum Addressable External Memory Space; (6)32-Bit External Parallel Bus Memory Supporting External Memory Interface (EMIF) With General-Purpose Input/Output (GPIO) Capabilities.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

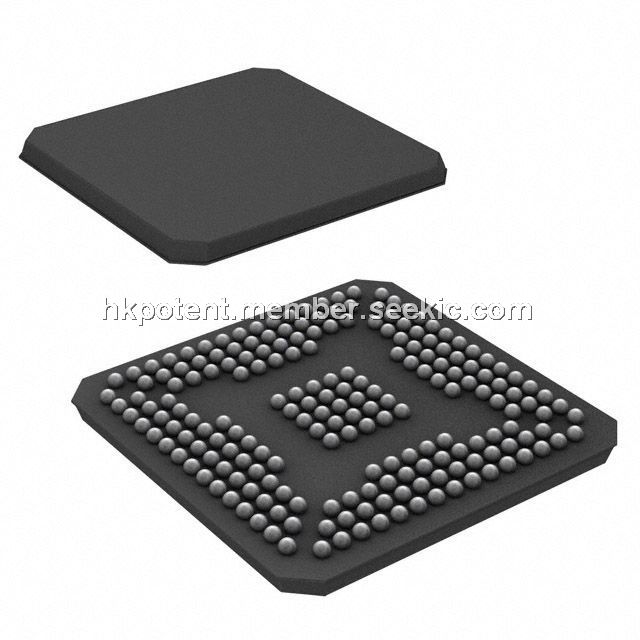

TMS320VC5501PGF300 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Pt Dig Signal Proc |
Data Sheet |
|
|
|||||||||||||
