Product Summary

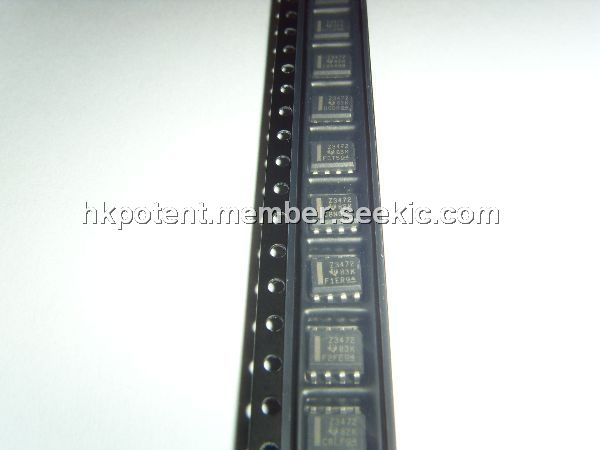

The TL3472IDR is a high-slew-rate, single-supply operational amplifier. This device offers 4 MHz of gain-bandwidth product, 13-V/μs slew rate, and fast settling time, without the use of JFET device technology. Although the TL3472IDR can be operated from split supplies, it is particularly suited for single-supply operation because the common-mode input voltage range includes ground potential(VCC–). With a Darlington transistor input stage, the TL3472IDR exhibits high input resistance, low input offset voltage, and high gain.
Parametrics
TL3472IDR absolute maximum ratings: (1)Supply voltage: VCC+: 18 V, VCC–: –18 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage, VI (any input): VCC±; (4)Input current, II (each input): ±1 mA; (5)Output current, IO: ±80 mA; (6)Total current into VCC+: 80 mA; (7)Total current out of VCC–: 80 mA; (8)Package thermal impedance, θJA: D package: 97℃/W, P package: 85℃/W; (9)Lead temperature 1.6 mm (1/16 inch) from case for 10 seconds: 260℃; (10)Storage temperature range, Tstg: –65℃ to 150℃.
Features
TL3472IDR features: (1)Wide Gain-Bandwidth Product: 4 MHz; (2)High Slew Rate: 13 V/μs; (3)Fast Settling Time: 1.1 μs to 0.1%; (4)Wide-Range Single-Supply Operation: 4 V to 36 V; (5)Wide Input Common-Mode Range Includes Ground (VCC–); (6)Low Total Harmonic Distortion: 0.02%; (7)Large-Capacitance Drive Capability: 10,000 pF; (8)Output Short-Circuit Protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL3472IDR |
Texas Instruments |
Operational Amplifiers - Op Amps High-Slew-Rate Single-Supply |
Data Sheet |
|
|
||||||||||||
|
TL3472IDRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps High-Slew-Rate Single-Supply |
Data Sheet |
|
|
||||||||||||
|
TL3472IDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Hi-Slew-Rate Sgl- Supply Op Amp |
Data Sheet |
|
|
||||||||||||
