Product Summary

The XC68HC705B32CFN is a MCU.

Parametrics

XC68HC705B32CFN absolute maximum ratings: (1)Supply voltage VDD: –0.5 to +7.0 V; (2)Input voltage (Except VPP1 and VPP6):VSS–0.5 to VDD + 0.5 V; (3)Input voltage: VSS–0.5 to 2VDD + 0.5 V; (4)Operating temperature range:0 to +70℃; (5)Storage temperature range:–65 to +150℃.

Features

XC68HC705B32CFN features: (1)15kbytes EPROM ; (2)352 bytes of RAM; (3)576 bytes bootstrap ROM ; (4)Simultaneous programming of up to 8 bytes of EPROM; (5)Optional pull-down resistors available on all port B and port C pins; (6)52-pin PLCC and 64-pin QFP packages.

Diagrams

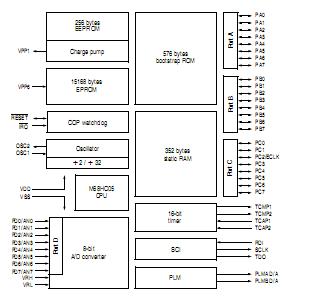

XC68HC705B32CFN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

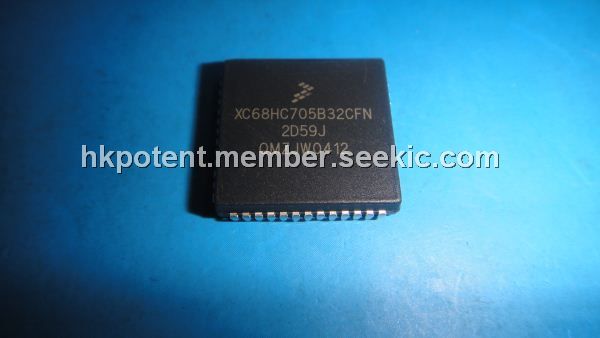

XC68HC705B32CFN
XC68HC705B32CFN


IC MCU 2.1MHZ 32K OTP 52-PLCC

Data Sheet

Negotiable
