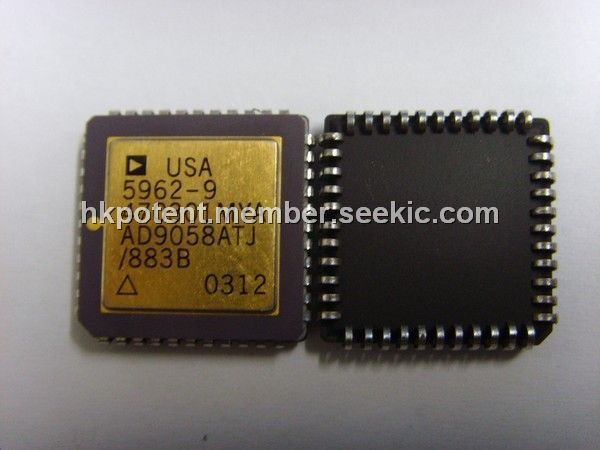

Product Summary

The AD9058ATJ is a Dual 8-Bit 50 MSPS A/D Converter. The AD9058ATJ combines two independent high performance 8-bit analog-to-digital converters (ADCs) on a single monolithic IC. Combined with an optional onboard voltage reference, the AD9058ATJ provides a cost effective alternative for systems requiring two or more ADCs. The applications of the device include Quadrature Demodulation for Communications, Digital Oscilloscopes, Electronic Warfare and Radar.

Parametrics

AD9058ATJ absolute maximum ratings: (1)Analog Input: –1.5 V to +2.5 V; (2)+VS: +6 V; (3)–VS: +0.8 V to –6 V2; (4)Digital Inputs: –0.5 V to +VS; (5)Digital Output Current: 20 mA; (6)Voltage Reference Current: 53 mA; (7)+VREF: +2.5 V; (8)–VREF: –1.5V; (9)Operating Temperature Range: 0 to +70℃; (10)Maximum Junction Temperature: +175℃; (11)Storage Temperature Range:–65 to +150℃; (12)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD9058ATJ features: (1)Two Matched ADCs on Single Chip; (2)50 MSPS Conversion Speed; (3)On-Board Voltage Reference; (4)Low Power (<1W); (5)Low Input Capacitance (10 pF); (6)65 V Power Supplies; (7)Flexible Input Range.

Diagrams

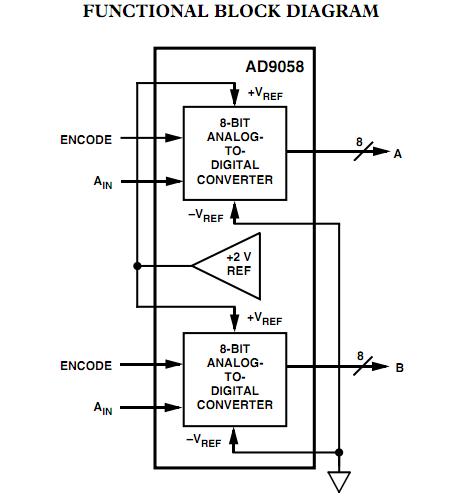

AD9058ATJ functional block diagram
