Product Summary

The IDT7164L85L32B is a high-speed 4K x 8 Dual-Port Static RAM designed to be used in systems where on-chip hardware port arbitration is not needed. This part lends itself to those systems which cannot tolerate wait states or are designed to be able to externally arbitrate or withstand contention when both sides simultaneously access the same Dual-Port RAM location. The IDT7164L85L32B provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. It is the user’s responsibility to ensure data integrity when simultaneously accessing the same memory location from both ports. An automatic power down feature, controlled by CE, permits the on-chip circuitry of each port to enter a very low standby power mode.

Parametrics

IDT7164L85L32B absolute maximum ratings: (1)VTERM Terminal Voltage with Respect to GND: -0.5V to +7.0V; (2)TBIAS Temperature Under Bias: -65℃ to +135℃; (3)TSTG Storage Temperature: -65℃ to +150℃; (4)PT Power Dissipation: 1.5W; (5) IOUT DC Output Current: 50mA.

Features

IDT7164L85L32B features: (1)High-speed access: Military: 25/35/45/55/70ns (max.), Industrial: 55ns (max.), Commercial: 20/25/35/45/55/70ns (max.); (2)Low-power operation; (3)Fully asynchronous operation from either port; (4)Battery backup operation.2V data retention; (5)TTL-compatible; single 5V (±10%) power supply; (6)Available in 48-pin DIP, LCC, Flatpack and 52-pin PLCC; (7)Military product compliant to MIL-PRF-38535 QML; (8)Industrial temperature range (.40°C to +85°C) is available for selected speeds.

Diagrams

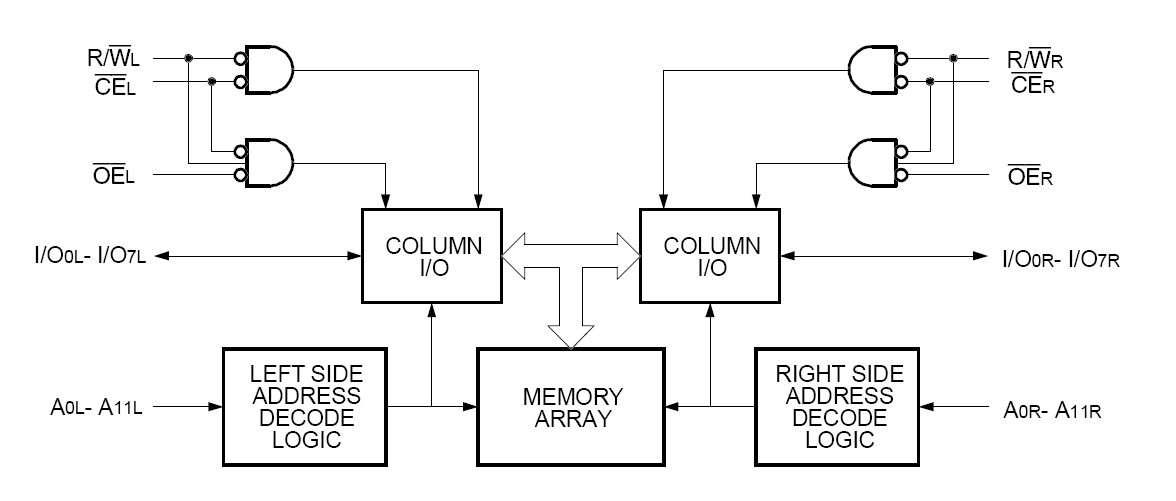

IDT7164L85L32B block diagram
