Product Summary

The DS1991L-F5 MultiKey iButton is a rugged read/write data carrier that acts as three separate electronic keys, offering 1,152 bits of secure, nonvolatile memory. Each key is 384 bits long with distinct 64-bit password and public ID fields (Figure 1). The password field must be matched in order to access the secure memory. Data is transferred serially via the 1-Wire protocol, which requires only a single data lead and a ground return.

Parametrics

Absolute maximum ratings: (1)Voltage on any Pin Relative to Ground: -0.5V to +7.0V; (2)Operating Temperature: -40℃ to +70℃; (3)Storage Temperature: -40℃ to +70℃.

Features

Features: (1)1,152-bit secure read/write, nonvolatile memory; (2)Secure memory cannot be deciphered without matching 64-bit password; (3)Memory is partitioned into 3 blocks of 384 bits each; (4)64-bit password and ID fields for each memory block; (5)512-bit scratchpad ensures data transfer integrity; (6)Operating temperature range: -40°C to +70°C; (7)Over 10 years of data retention Easily affixed with self-stick adhesive backing, latched by its flange, or locked with a ring pressed onto its rim; (8)Presence detector acknowledges when reader first applies voltage; (9)Meets UL#913 (4th Edit.); Intrinsically Safe Apparatus, Approved under Entity Concept for use in Class I, Division 1, Group A, B, C and D Locations.

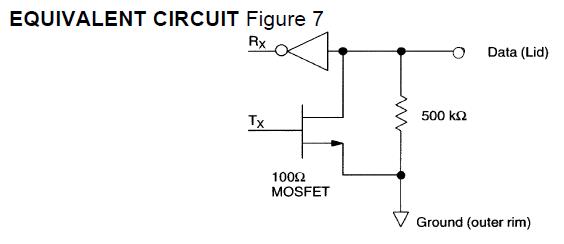

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DS1991L-F5
DS1991L-F5

Maxim Integrated Products

iButtons

Data Sheet

Negotiable
DS1991L-F5/A1A
DS1991L-F5/A1A

Maxim Integrated Products

iButtons

Data Sheet

Negotiable
DS1991L-F5+A1A
DS1991L-F5+A1A

Maxim Integrated Products

iButtons

Data Sheet

Negotiable
DS1991L-F5W
DS1991L-F5W

Maxim Integrated Products

iButtons

Data Sheet

Negotiable
DS1991L-F5+
DS1991L-F5+

Maxim Integrated Products

iButtons

Data Sheet

Negotiable
