Product Summary

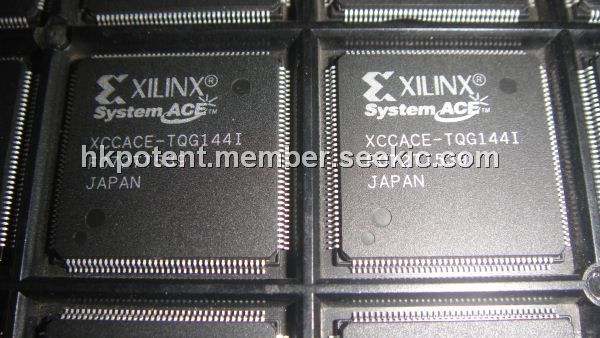

The XCCACE-TQG144I is a System ACE CompactFlash Solution. The XCCACE-TQG144I is designed to address the need for a space-efficient, pre-engineered, high-density configuration solution for systems with multiple FPGAs System ACE technology of the XCCACE-TQG144I is a ground-breaking in-system programmable configuration solution that provides substantial savings in development effort and cost per bit over traditional PROM and embedded solutions for high-capacity FPGA systems.

Parametrics

XCCACE-TQG144I absolute maximum ratings: (1)Power Supply Voltage, VCCH: GND – 0.3 to 7.0V; VCCL: GND – 0.3 to 4.0V; (2)Input Voltage, VIH: GND – 0.3 to VCCH + 0.5V; VIL: GND – 0.3 to VCCL + 0.5V; (3)Output Voltage, VVOH: GND – 0.3 to VCCH + 0.5V; VOL: GND – 0.3 to VCCL + 0.5V; (4)Output Current/Pin, IOUT: ±30 mA; (5)Storage Temperature, TSTG: –65 to 150℃.

Features

XCCACE-TQG144I features: (1)High-capacity pre-engineered configuration solution for FPGAs; (2)System ACE CF Controller XCCACE-TQG144I device; (3)Maximum CompactFlash (CF) partition capacity of 2 GB; (4)Non-volatile system storage solution; (5)Flexible configuration interfaces; (6)System configuration rates of up to 30 Mb/s; (7)Board space requirement as low as 25 cm2; (8)Interfaces include CompactFlash, JTAG, and MPU; (9)MPU interface is compatible with various microprocessor and microcontroller bus interfaces, including the Xilinx FPGA-based PowerPC and MicroBlaze processors.

Diagrams

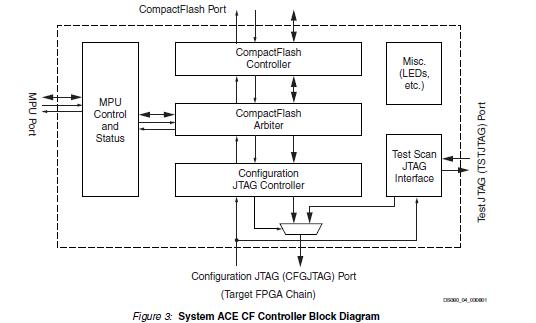

XCCACE-TQG144I block diagram
