Product Summary

The HD6475328F10 has the H8/500 Family CPU: a high-speed central processing unit designed for realtime control of a wide range of medium-scale office and industrial equipment. Its Hitachioriginal architecture features eight 16-bit general registers, internal 16-bit data paths, and an optimized instruction set.

Parametrics

Absolute maximum ratings: (1)Supply voltage: –0.3 to +7.0 V; (2)Programming voltage: –0.3 to +13.5 V; (3)Input voltage (except Port 8): –0.3 to VCC + 0.3 V, (Port 8): –0.3 to AVCC + 0.3 V; (4)Analog supply voltage: –0.3 to +7.0 V; (5)Analog input voltage: –0.3 to AVCC + 0.3 V; (6)Operating temperature: Regular specifications: –20 to +75 ℃, Wide-range specifications: –40 to +85 ℃; (7)Storage temperature: –55 to +125 ℃.

Features

Features: (1)General-register machine: Eight 16-bit general registers, Five 8-bit and two 16-bit control registers; (2)High speed: Maximum clock rate: 10MHz (oscillator frequency: 20MHz) Expanded operating modes supporting external memory, Minimum mode: up to 64K-byte address space, Maximum mode: up to 1M-byte address space; (3)Highly orthogonal instruction set: Addressing modes and data size can be specified independently for each instruction; (4)1.5 Addressing modes: Register-register operations, Register-memory operations; (5)Instruction set optimized for C language: Special short formats for frequently-used instructions and addressing modes.

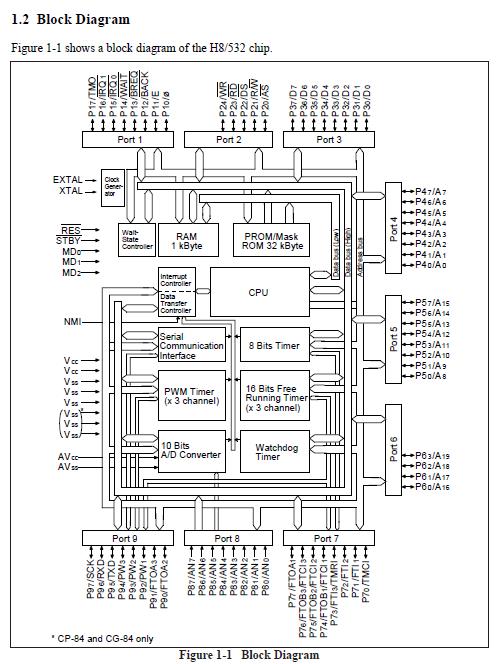

Diagrams
