Product Summary
The TMS320LF2406APZA is a digital signal processor (DSP) controller. It offers the enhanced TMS320 DSP architectural design of the C2xx core CPU for low-cost, low-power, and high-performance processing capabilities.
Parametrics
Absolute maximum ratings: (1)Supply voltage range:-0.3V to 4.6V ; (2)VCCP range:-0.3V to 5.5V ; (3)Input voltage range:-0.3V to 4.6V; (4)Output voltage range:-0.3V to 4.6V; (5)Output voltage range:-0.3V to 4.6V; (6)Input clamp current:±20mA ; (7)Output clamp current:±20mA ; (8)Junction temperature range:-40℃ to 150℃; (9)Storage temperature range:-65℃ to 150℃.
Features
Features: (1)High-Performance Static CMOS Technology; (2)Watchdog (WD) Timer Module; (3)10-Bit Analog-to-Digital Converter (ADC); (4)Controller Area Network (CAN) 2.0B Module; (5)Serial Communications Interface (SCI); (6)16-Bit Serial Peripheral Interface (SPI); (7)Phase-Locked-Loop (PLL)-Based Clock Generation; (8)Up to 40 Individually Programmable, Multiplexed General-Purpose Input /Outpu(GPIO) Pins; (9)Up to Five External Interrupts (Power Drive Protection, Reset, Two Maskable Interrupts).

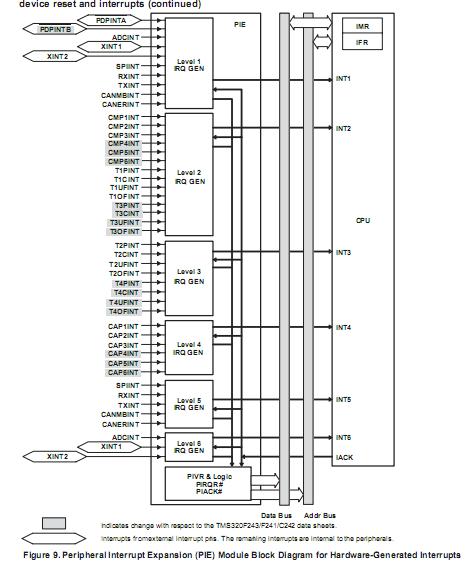

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

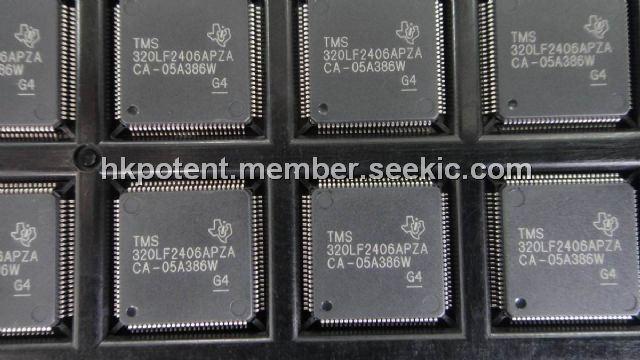

 TMS320LF2406APZA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) 16-Bit Fixed-Pt DSP with Flash |
Data Sheet |
|
|
||||||||||||
|
TMS320LF2406APZAR |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) 16-Bit Fixed-Pt DSP |
Data Sheet |
|
|
||||||||||||
