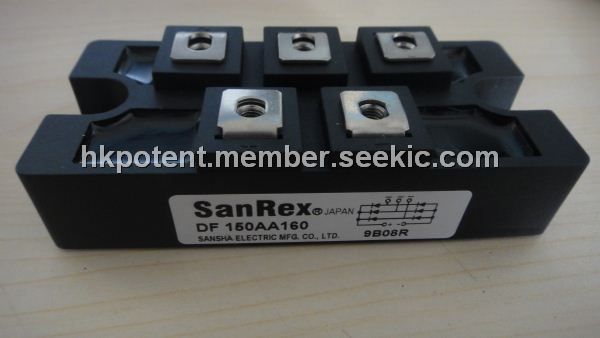

The DF150AA160 is a Power Diode Module. The DF150AA160 is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the DF150AA160 is electrically isolated from semiconductor elements for simple heatsink construction. The applications of the DF150AA160 include AC, DC Motor Drive/AVR/Switching for three phase rectification.
Parametrics
DF150AA160 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage: 1600 V; (2)Non-Repetitive Peak Reverse Voltage: 1700 V; (3)Output Current (D.C): 150 A; (4)Surge Forward Current: 1100/1200 A; (5)I2t: 6000 A2S; (6)Operating Junction Temperature: -40 to +150 ℃; (7)Storage Temperature: -40 to +125 ℃; (8)Isolation Breakdown Voltage: 2500 V.
Features
DF150AA160 features: (1)TjMax=150℃; (2)Isolated mounting base; (3)High reliability by unique glass passivation.
