Product Summary
The TMS320F2812PGFA digital signal processor is a member of the TMS320C28x DSP generation. It is highly integrated, high-performance solutions for demanding control applications.
Parametrics
Absolute maximum ratings: (1)Supply voltage range (VDDIO, VDD3VFL, VDDA1, VDDA2, VDDAIO, and AVDDREFBG): –0.3 V to 4.6 V; (2)Supply voltage range (VDD, VDD1): –0.5 V to 2.5 V; (3)Input voltage range, VIN: –0.3 V to 4.6 V; (4)Output voltage range, VO: –0.3 V to 4.6 V; (5)Input clamp current, IIK (VIN < 0 or VIN > VDDIO): ±20 mA; (6)Output clamp current, IOK (VO < 0 or VO > VDDIO): ±20 mA; (7)Operating ambient temperature ranges, TA A version (GHH, ZHH, PGF, PBK): –40℃ to 85℃; (8)S version (GHH, ZHH, PGF, PBK): –40℃ to 125℃; (9)Q version (PGF, PBK): –40℃ to 125℃; (10)Junction temperature range, TJ: –40℃ to 150℃; (11)Storage temperature range, Tstg: –65℃ to 150℃.
Features
Features: (1)High-Performance Static CMOS Technology; (2)Clock and System Control; (3)JTAG Boundary Scan Support; (4)Three External Interrupts; (5)High-Performance 32-Bit CPU ( TMS320C28x) ; (6)Peripheral Interrupt Expansion (PIE) Block That Supports 45 Peripheral Interrupts; (7)Boot ROM (4K x 16) ; (8)Advanced Emulation Features: Analysis and Breakpoint Functions; Real-Time Debug via Hardware; (9)Low-Power Modes and Power Savings: IDLE, STANDBY, HALT Modes Supported; Disable Individual Peripheral Clocks.

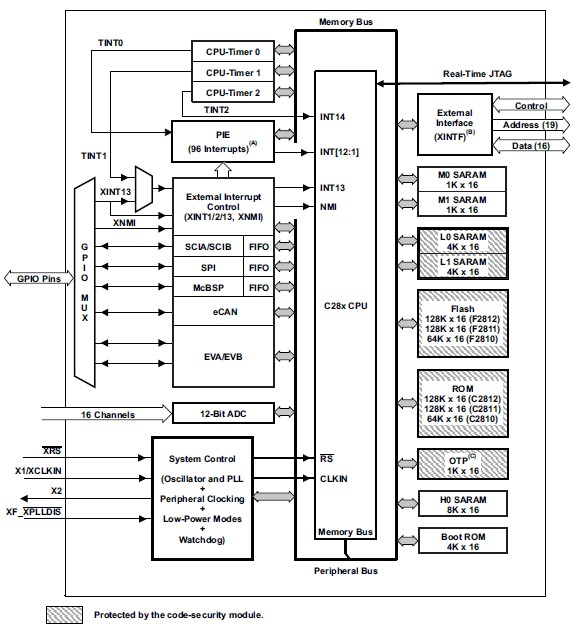

Diagrams
 |
