Product Summary

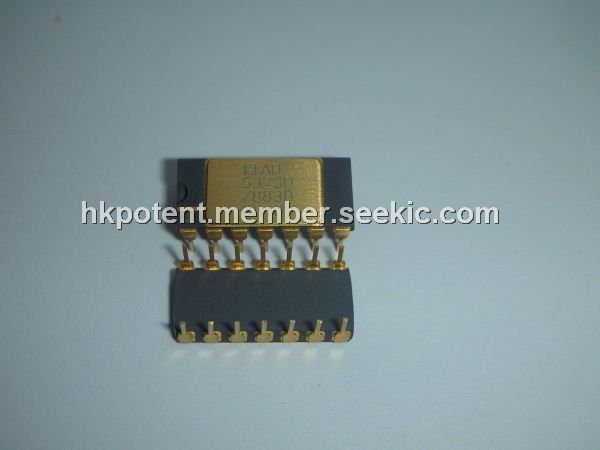

The AD532SD/883B is an internally trimmed integrated circuit multiplier. The AD532SD/883B is the first pretrimmed single chip monolithic multiplier/ divider. It guarantees a maximum multiplying error of ±1.0% and a ±10 V output voltage without the need for any external trimming resistors or output op amp. Because the AD532SD/883B is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers, and its monolithic construction provides significant advantages in size, reliability and economy. Further, the AD532SD/883B can be used as a direct replacement for other IC multipliers that require external trim networks. The applications of the AD532SD/883B include Multiplication, Division, Squaring, Square Rooting, Algebraic Computation, Power Measurements, Instrumentation Applications, Available in Chip Form.

Parametrics

AD532SD/883B absolute maximum ratings: (1)Output Voltage Swing: ±10 to ±13 V; (2)Output Impedance (f ≤ 1 kHz): 1 Ω; (3)Output Offset Voltage: ±30 mV; (4)Output Offset Voltage vs. Temperature: 2.0 mV/℃; (5)Output Offset Voltage vs. Supply: ±2.5 mV/%; (6)Signal Voltage Range (Diff. or CM Operating Diff): ±10 V; (7)CMRR: 50 dB; (8)Input Bias Current, X, Y Inputs 1.5 to 4 μA; X, Y Inputs TMIN to TMAX: 8 μA; Z Input: ±5 to ±15 μA; Z Input TMIN to TMAX: ±25 μA; (9)Offset Current: ±0.1 μA; (10)Differential Resistance: 10Ω.

Features

AD532SD/883B features: (1)Pretrimmed to 61.0%; (2)No External Components Required; (3)Guaranteed 61.0% max 4-Quadrant Error; (4)Diff Inputs for (X1 – X2) (Y1 – Y2)/10 V Transfer Function; (5)Monolithic Construction, Low Cost.

Diagrams

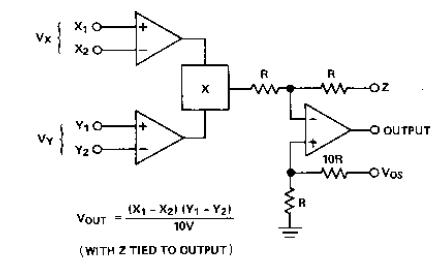

AD532SD/883B block diagram
