Product Summary

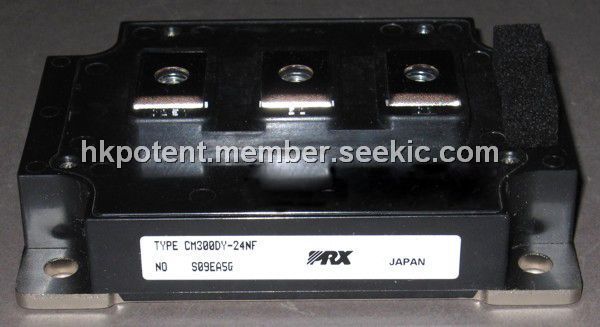

The CM300DY-24NF is an IGBT module. The applications of CM300DY-24NF are General purpose inverters & Servo controls, etc.
Parametrics
CM300DY-24NF absolute maximum ratings: (1)Collector-emitter voltage:1200V; (2)Gate-emitter voltage: ±20V; (3)Maximum collector dissipation:1130W; (4)Junction temperature:-40℃ to +150℃; (5)Storage temperature:-40℃ to +125℃; (6)Isolation voltage: 2500Vrms; (7) Collector current: 300A or 600A; (8) Emitter current: 300A or 600A.
Features
CM300DY-24NF features: (1) IC: 300A; (2) VCES: 1200V; (3) Insulated Type; (4)2-elements in a pack.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM300DY-24NF |
|
IGBT MOD DUAL 1200V 300A NF SER |
Data Sheet |
Negotiable |
|
||||||
