Product Summary
The SAB80C537-N is a high-end member of the Siemens SAB 8051 family of microcontrollers. It is designed in Siemens ACMOS technology and based on the SAB 8051 architecture. ACMOS is a technology which combines high-speed and density characteristics with low-power consumption or dissipation. The SAB80C537-N is identical with the SAB 80C517 except that it lacks the on-chip program memory.
Parametrics
SAB80C537-N absolute maximum ratings: (1)Ambient temperature under bias: 0 to 70℃; (2)Storage temperature, TST: – 65 to 150℃; (3)Voltage on VCC pins with respect to ground (VSS): – 0.5 V to 6.5 V; (4)Voltage on any pin with respect to ground (VSS): – 0.5 to VCC+0.5 V; (5)Input current on any pin during overload condition: – 10mA to +10mA; (6)Absolute sum of all input currents during overload condition: |100mA|; (7)Power dissipation: 2 W.
Features
SAB80C537-N features: (1)Versions for 12 MHz and 16 MHz operating frequency; (2)8 K × 8 ROM (SAB 80C517 only); (3)256 × 8 on-chip RAM; (4)Superset of SAB 80C51 architecture: 1 μs instruction cycle time at 12 MHz; 750 ns instruction cycle time at 16 MHz; 256 directly addressable bits; Boolean processor ; 64 Kbyte external data and program memory addressing; (5)Four 16-bit timer/counters; (6)Powerful 16-bit compare/capture unit (CCU) with up to 21 high-speed or PWM output channels and 5 capture inputs; (7)Versatile fail-safe provisions; (8)Fast 32-bit division, 16-bit 2 multiplication, 32-bit normalize and shift by peripheral MUL/DIV unit (MDU); (9)Eight data pointers for external memory addressing; (10)Fourteen interrupt vectors, four priority levels selectable; (11)8-bit A/D converter with 12 multiplexed inputs and programmable ref. voltages; (12)Two full duplex serial interfaces; (13)Fully upward compatible with SAB 80C515; (14)Extended power saving modes; (15)Nine ports: 56 I/O lines, 12 input lines; (16)Two temperature ranges available: 0 to 70℃; –40 to 85℃; (17)Plastic packages: P-LCC-84, P-MQFP-100-2.

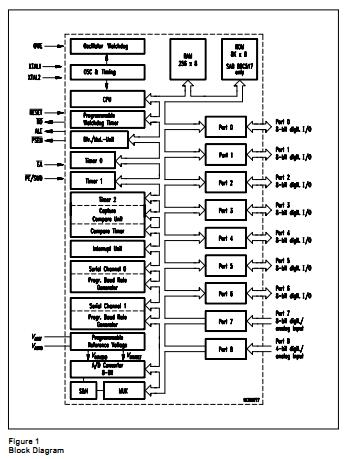

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

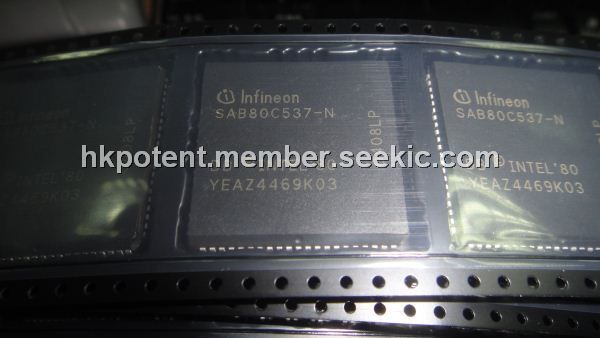

SAB80C537-N |
IC MIRCROCONTROLLER 8BIT 84PLCC |
Data Sheet |
Negotiable |
|
||||||
