Product Summary

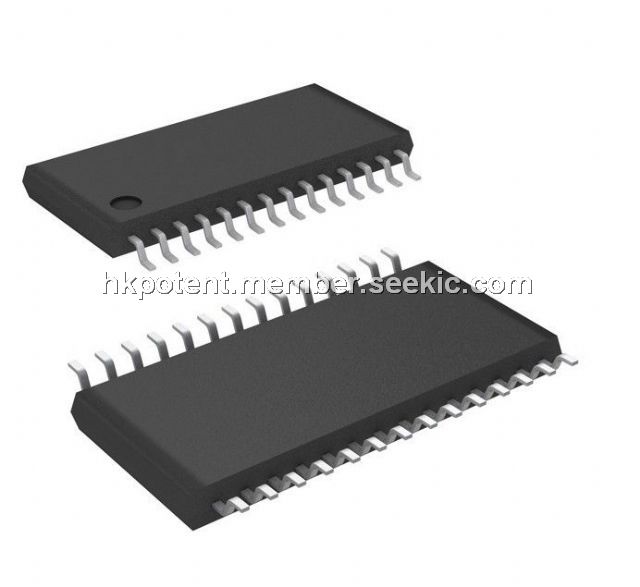

The MSP430F1232IPW is a ultralow-power mixed signal microcontroller with a built-in 16-bit timer, 10-bit A/D converter with integrated reference and data transfer controller (DTC) and fourteen or twenty-two I/O pins. In addition, the MSP430F1232IPW microcontroller has built-in communication capability using asynchronous (UART) and synchronous (SPI) protocols.
Parametrics
Absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg (unprogrammed device): -55℃ to 150℃; (5)Storage temperature, Tstg (programmed device): -40℃ to 85℃.
Features
Features: (1)Low Supply Voltage Range 1.8 V - 3.6 V; (2)Five Power Saving Modes; (3)Wake-Up From Standby Mode in less than 6 μs; (4)16-Bit RISC Architecture, 125 ns Instruction Cycle Time; (5)Basic Clock Module Configurations: Various Internal Resistors, Single External Resistor, 32-kHz Crystal, High Frequency Crystal, Resonator, External Clock Source; (6)16-Bit Timer_A With Three Capture/Compare Registers; (7)10-Bit, 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller; (8)Serial Communication Interface (USART0) With Software-Selectable Asynchronous UART or Synchronous SPI (MSP430x12x2 Only).

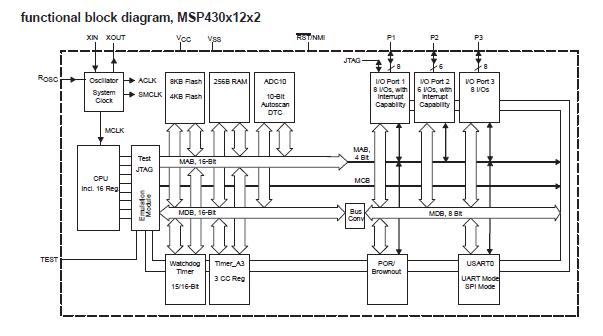

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MSP430F1232IPW |
Texas Instruments |
16-bit Microcontrollers (MCU) 8kB Flash 256B RAM 10bit ADC + 1 USART |
Data Sheet |
|
|
||||||||||||
|
MSP430F1232IPWR |
Texas Instruments |
16-bit Microcontrollers (MCU) 8kB Flash 256B RAM 10bit ADC + 1 USART |
Data Sheet |
|
|
||||||||||||
