TD62386AP

TD62386AP, 8ch low input active darlington sink driver, DIP, -0.5 to 7V, 500mA, Toshiba Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
101 ~ 500 :	0.80 / Piece
501 ~ 1000 :	0.65 / Piece

PartNumber:: TD62386AP

Brand:: Toshiba Semiconductor - Toshiba | Pack: DIP | D/C: 02+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-25

From Other Seller

Part Number:TD62386AP
US $0.65 - 1.00
Quantity:

piece

Product Summary

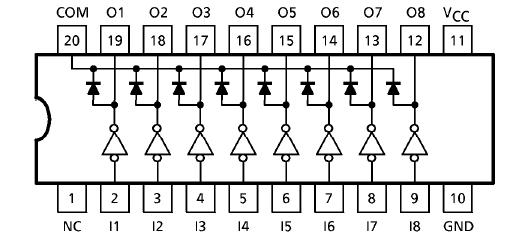

The TD62386AP is an 8ch low input active darlington sink driver comprised of eight NPN darlington output stages and PNP input stages. The unit features integral clamp diodes for switching inductive loads. The TD62386AP is a low level input active driver and is suitable for operations with TTL, 5V CMOS and 5V microprocessor which has sink current output drivers. Applications include relay, hammer, lamp and LED driver.

Parametrics

TD62386AP absolute maximum ratings: (1)Supply voltage, VCC: -0.5 to 7V; (2)Output sustaining voltage, AP, VCE: -0.5 to 50V; AF, VCE: -0.5 to 35V; (3)Output current, Iout: 500mA/ch; (4)Input voltage, vin: -22 to VCC +0.5V; VIN2: -0.5 to 7V; (5)Input current, IIN: -10mA; (6)Clamp diode reverse voltage, VR: 50V; (7)Clamp diode forward current, IF: 500mA; (8)Power dissipation, AP, PD: 1.38W; AF, PD: 1.0W; (9)Operating temperature, Topr: -40 to 85℃; (10)Storage temperature, Tstg: -55 to 150℃.

Features

TD62386AP features: (1)Output current 500mA; (2)High sustaining voltage 50V; (3)Output clamp diodes; (4)Low level active input; (5)Standard supply voltage; (6)Inputs compatible with TTL and 5V CMOS; (7)Package type-AP: DIP-20 pin; (8)Package type-AP: SOP-20 pin.
