Product Summary
The TC551664J-20 is a 1048,576-bit high speed static random access memory. It is well suited to cache memory applications where high-speed access and high-speed storage are required.
Parametrics
TC551664J-20 absolute maximum ratings: (1)power supply voltage: -0.5V to 7.0V; (2)input terminal voltage: -2.0V to 7.0V; (3)input/output terminal voltage: -0.5V to VDD+0.5V; (4)power dissipation: 1.5W; (5)soldering temperature(10s): 260℃; (6)storage temperature: -65℃ to 150℃; (7)operating temperature: -10℃ to 85℃.
Features
TC551664J-20 features: (1)fast access time: 12ns; (2)low power dissipation: 290mA; (3)single power supply voltage of 5V±10%; (4)fully static operation; (5)all inputs and outputs are TTL compatible; (6)output buffer control using OE.

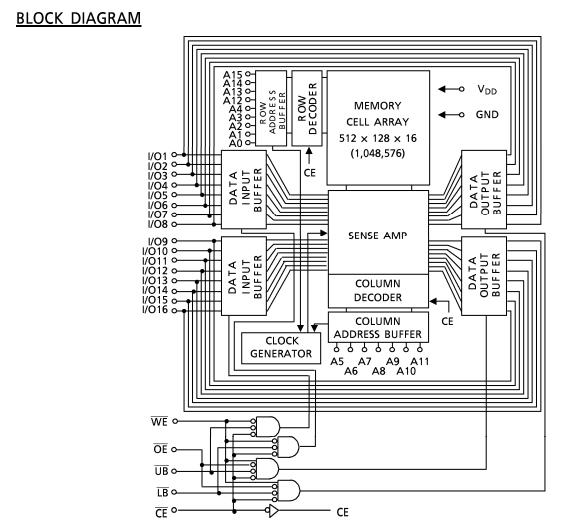

Diagrams
