NC7S14P5X

NC7S14P5X, single high performance CMOS Inverter, SOT, -0.5V to +7.0V, 200mW, 20mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
101 ~ 500 :	0.80 / Piece
501 ~ 1000 :	0.65 / Piece

PartNumber:: NC7S14P5X

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOT | D/C: 05+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-25

From Other Seller

Part Number:NC7S14P5X
US $0.65 - 1.00
Quantity:

piece

Product Summary

The NC7S14P5X is a single high performance CMOS Inverter with Schmitt Trigger input. The NC7S14P5X design provides hysteresis between the positive-going and negative going input thresholds thereby improving noise margins. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both input and output with respect to the VCC and GND rails.

Parametrics

NC7S14P5X absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Diode Current (IIK) @VIN ≤ -0.5V: -20mA; (3)@VIN ≥ VCC +0.5V: +20mA; (4)DC Input Voltage (VIN): -0.5V to VCC +0.5V; (5)DC Output Diode Current (IOK) @VOUT＜ -0.5V: -20mA; (6)@VOUT＞ VCC +0.5V: +20mA; (7)DC Output Voltage (VOUT): -0.5V to VCC +0.5V; (8)DC Output Source or Sink Current (IOUT): ±12.5mA; (9)DC VCC or Ground Current per Output Pin (ICC or IGND): ±25mA; (10)Storage Temperature (TSTG): -65℃ to +150℃; (11)Junction Temperature (TJ): 150℃; (12)Lead Temperature (TL) (Soldering, 10 seconds): 260℃; (13)Power Dissipation (PD) @ +85℃ SOT23-5: 200mW; (14)SC70-5: 150mW.

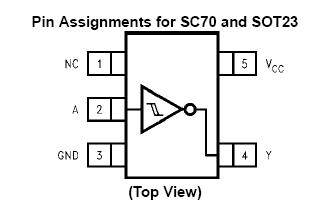

Features

NC7S14P5X features: (1) Space saving SOT23 or SC70 5-lead package; (2)Ultra small MicroPak. leadless package; (3)Schmitt input hysteresis: ＞1V typ; (4)High speed: tPD 4.5 ns typ; (5)Low quiescent power: ICC ＜ 1 μA; (6)Balanced output drive: 2 mA IOL, .2 mA IOH; (7)Broad VCC operating range: 2V to 6V; (8)Balanced propagation delays; (9)Specified for 3V operation.
