Product Summary
The X28C010FMB-15 is a 5 Volt, Byte Alterable E2PROM, fabricated with Xicor’s proprietary, high performance, floating gate CMOS technology. Like all Xicor programmable nonvolatile memories the X28C010FMB-15 is a 5V only device. The X28C010FMB-15 features the JEDEC approved pin out for byte wide memories, compatible with industry standard EPROMs.
Parametrics
X28C010FMB-15 absolute maximum ratings: (1)Temperature under Bias: -10℃ to +85℃; (2)Storage Temperature:–65℃ to +150℃; (3)Voltage on any Pin with; (4)Respect to VSS: –1V to +7V; (5)D.C. Output Current: 5mA; (6)Lead Temperature (Soldering, 10 seconds): 300℃.
Features
X28C010FMB-15 features: (1)Access Time: 120ns; (2)Simple Byte and Page Write; (3)Single 5V Supply; (4)No External High Voltages or VPP Control Circuits; (5)Self-Timed; (6)No Erase Before Write; (7)No Complex Programming Algorithms; (8)No Over erase Problem; (9)Low Power CMOS: Active: 50mA, Standby: 500mA; (10)Software Data Protection: Protects Data Against System Level Inadvertant Writes; (11)High Speed Page Write Capability; (12)Highly Reliable Direct Write Cell; (13)Endurance: 100,000 Write Cycles; (14)Data Retention: 100 Years; (15)Early End of Write Detection; (16)DATA Polling; (17)Toggle Bit Polling.

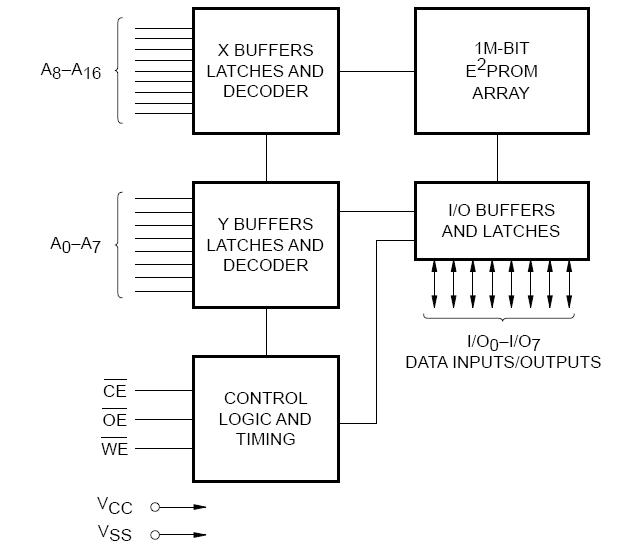

Diagrams
 |
