MIC2075-1YM

MIC2075-1YM, high-side MOSFET switch, SOP, -0.3V to 6V, 25mA, 3ms

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
101 ~ 500 :	0.80 / Piece
501 ~ 1000 :	0.65 / Piece

PartNumber:: MIC2075-1YM

Brand:: Micrel Semiconductor - Micrel | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-24

From Other Seller

Part Number:MIC2075-1YM
US $0.65 - 1.00
Quantity:

piece

Product Summary

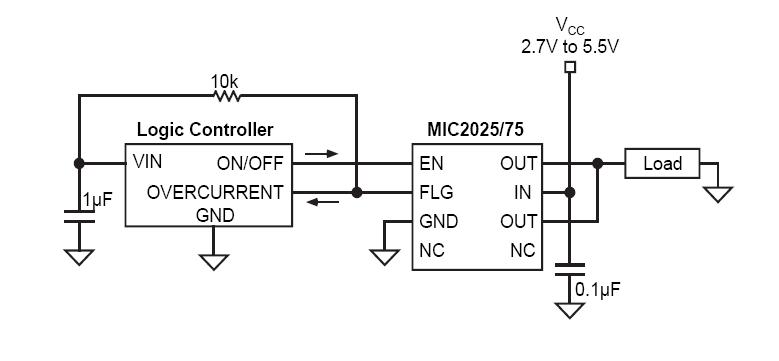

The MIC2075-1YM is a high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2075-1YM is internally current limited and have thermal shutdown that protects the device and load. The MIC2075-1YM offers “smart” thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output. The applications of the MIC2075-1YM include USB peripherals, General purpose power switching, ACPI power distribution, Notebook PCs, PDAs, PC card hot swap.

Parametrics

MIC2075-1YM absolute maximum ratings: (1)Supply Voltage (VIN):–0.3V to 6V; (2)Fault Flag Voltage (VFLG): +6V; (3)Fault Flag Current (IFLG): 25mA; (4)Output Voltage (VOUT): +6V; (5)Output Current (IOUT): Internally Limited; (6)Enable Input (IEN):–0.3V to VIN +3V; (7)Storage Temperature (TS):–65℃ to +150℃.

Features

MIC2075-1YM features: (1)140mΩ maximum on-resistance; (2)2.7V to 5.5V operating range; (3)500mA minimum continuous output current; (4)Short-circuit protection with thermal shutdown; (5)Fault status flag with 3ms filter eliminates false assertions; (6)Undervoltage lockout; (7)Reverse current flow blocking (no "body diode"); (8)Circuit breaker mode (MIC2075) reduces power consumption; (9)Logic-compatible input; (10)Soft-start circuit; (11)Low quiescent current; (12)Pin-compatible with MIC2525; (13)UL File # E179633.
