Product Summary

The PWR4011 is a DC/DC converter. The PWR4011 offers a low-cost alternative for some of the most popular DC/DC converters industry wide. Each model has a high-isolation version and an outstanding demonstrated MTTF of 5,000,000 hours at 25℃. The superior reliability and low cost make it an excellent choice for industry standard usages. The PWR4011 has full isolation between input and output to give the designer maximum flexibility in grounding options and polarity configurations. The outputs are protected against momentary short circuits.

Parametrics

PWR4011 absolute maximum ratings: (1)Output Short-Circuit Duration: 1 second; (2)Internal Power Dissipation: 850mW; (3)Lead Temperature (soldering, 10 seconds max): +300℃

Features

PWR4011 features: (1) low cost; (2)industry-standard package; (3)single and dual outputs; (4)internal input and output filtering; (5)high isolation voltage option available.

Diagrams

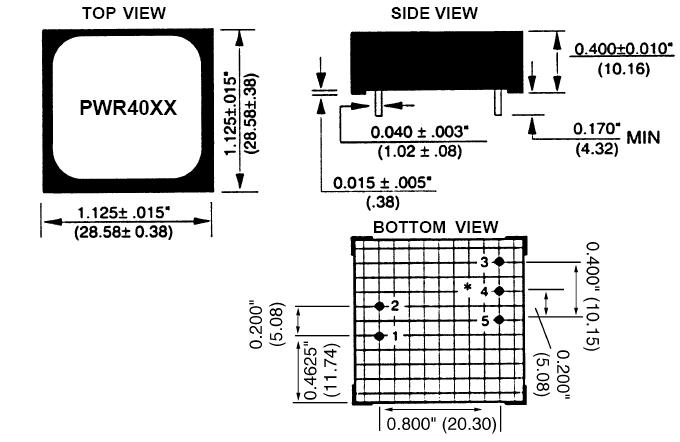

PWR4011 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PWR4011C
PWR4011C
Murata Power Solutions
DC/DC Converters +/-15Vout +/-135mA 12Vin 4W Unregulated
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PWR4000-HVC
PWR4000-HVC
Murata Power Solutions
DC/DC Converters 5Vin 5Vout 800mA 4W High Voltage
Data Sheet
Negotiable
PWR4004C
PWR4004C
Murata Power Solutions
DC/DC Converters +/-12Vout +/-170mA 5Vin 4W Unregulated
Data Sheet
Negotiable
PWR4004-HVC
PWR4004-HVC
Murata Power Solutions
DC/DC Converters +/-12Vout +/-170mA 5Vin 4W High Voltage
Data Sheet
Negotiable
PWR4005C
PWR4005C
Murata Power Solutions
DC/DC Converters +/-15Vout +/-135mA 5Vin 4W Unregulated
Data Sheet
Negotiable
PWR4011C
PWR4011C
Murata Power Solutions
DC/DC Converters +/-15Vout +/-135mA 12Vin 4W Unregulated
Data Sheet
Negotiable

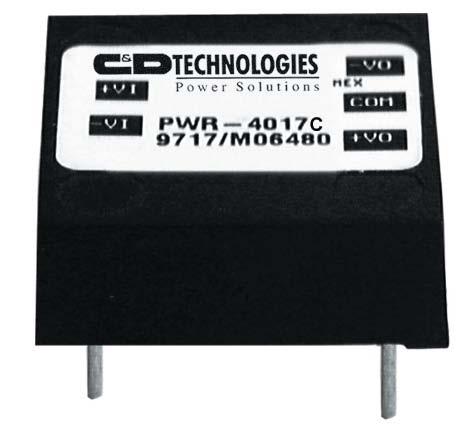

PWR4017-HVC
PWR4017-HVC
Murata Power Solutions
DC/DC Converters +/-15Vout +/-135mA 15Vin 4W High Volt
Data Sheet
Negotiable
