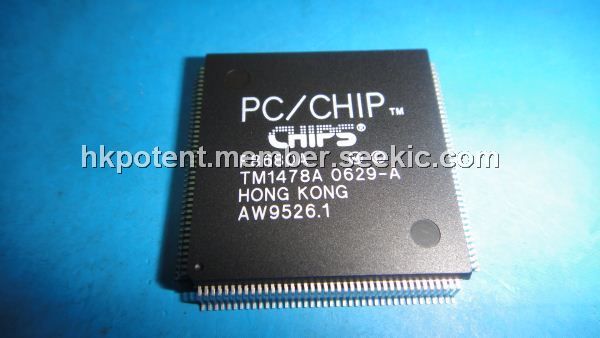

Product Summary

The F8680A is a true single-chip PC. It features the SuperState R management system, low power consumption, high performance, direct support of PCMCIA 2.0 memory and I/O cards, and flexible memory support. Chips and Technologies, Inc. has designed the F8680A microchip to accommodate a wide variety of low power, cost-sensitive DOS applications: palmtop, laptop, and desktop computers, electronic notebooks and handhelds, and embedded controller systems.

Parametrics

F8680A absolute maximum ratings: (1)Supply Voltage, 5V: 4.5 to 5.5 V; (2)Supply Voltage, 3.3V: 3.0 to 3.6 V; (3)Ambient Temperature: 0 to 70 ℃; (4)Ambient Temperature Industrial: -40 to 85 ℃; (5)Input Capacitance, Vcc = 5V: 8pF max; (6) Output Capacitance, Vcc = 5V: 8pF max; (7)I/O Capacitance, Vcc = 5V: 8pF max.

Features

F8680A features: (1)3.3V/5V operation, fully static design, and intelligent sleep mode reduce power consumption approximately 60 percent and allow direct battery drive; (2)PC-compatible design supports PC software and 8-bit ISA cards; (3)SuperState R mode provides a separate operating environment and enables complete I/O and interrupt monitoring without BIOS modification; (4)Virtual I/O? feature allows device emulation as well as I/O monitoring and control; (5)Virtual Interrupts feature allows interrupts to be monitored and/or redirected before any operating system, application program, or TSR sees them; (6)Full PCMCIA 2.0 memory and I/O card support ensure compatibility with current and future expansions.

Diagrams

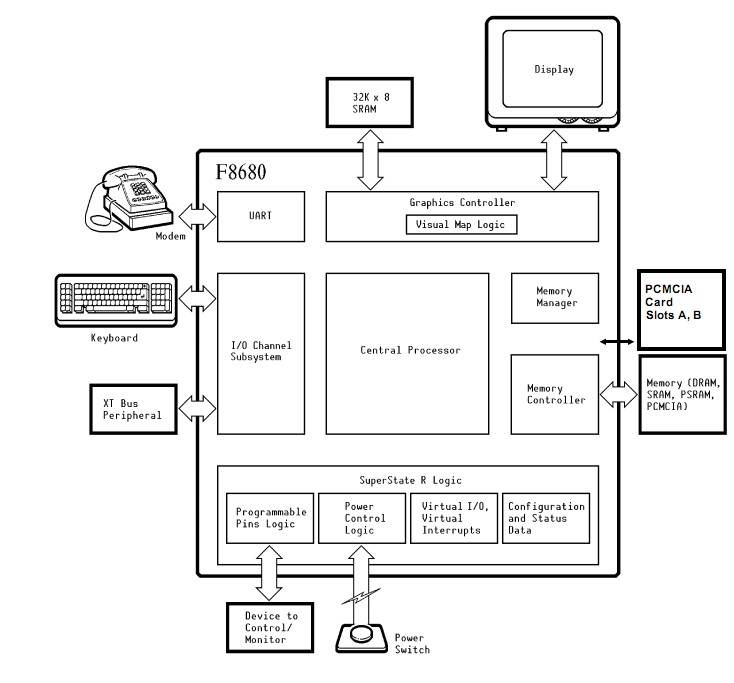

F8680A block diagram
