Product Summary

The MC145506P is a PCM Codec-Filter Mono-circuit. The MC145506P performs the voice digitization and reconstruction, as well as the band limiting and smoothing required for PCM systems. It has HCMOS compatible digital outputs and otherwise supplement. The MC145506P is functionally similar to the MC145502, MC145503, and MC145505, respectively. It is designed to operate in both synchronous and asynchronous applications and contain an on–chip precision reference voltage. The MC145506P is offered in a 22–pin package and has the capability of selecting from three peak overload voltages (2.5 V, 3.15 V, and 3.78 V).

Parametrics

MC145506P absolute maximum ratings: (1)DC Supply Voltage VDD – VSS: –0.5 to 13 V; (2)Voltage, Any Pin to VSS V: –0.5 to VDD + 0.5 V; (3)DC Drain Per Pin (Excluding VDD, VSS) I: 10mA; (4)Operating Temperature Range TA: –40 to 85℃; (5)Storage Temperature Range Tstg: –85 to 150℃.

Features

MC145506P features: (1)Selectable Peak Overload Voltages (2.5 V, 3.15 V, 3.78 V); (2)Push-Pull Analog Output with Gain Adjust; (3)64 kHz to 4.1 MHz Transmit and/or Receive Data Clock Rate; (4)All the Features of the MC145507 Listed Below.

Diagrams

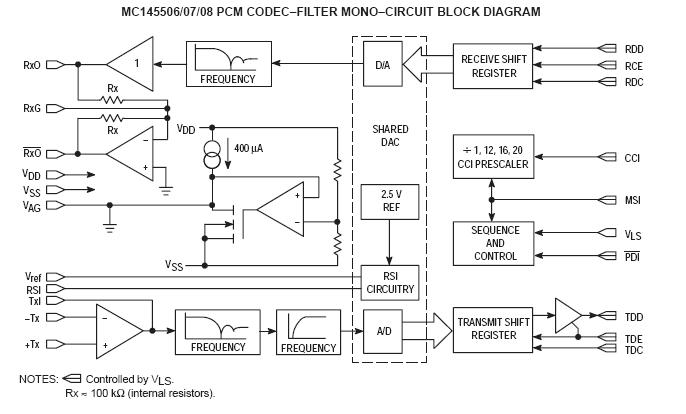

MC145506P block diagram
