MAX846AEEE

MAX846AEEE, Cost-Saving, Multichemistry Battery-Charger System, SOP, 100mA, 667mW, +21V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: MAX846AEEE

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Judy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-30

From Other Seller

Part Number:MAX846AEEE
US $1.00 - 3.00
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

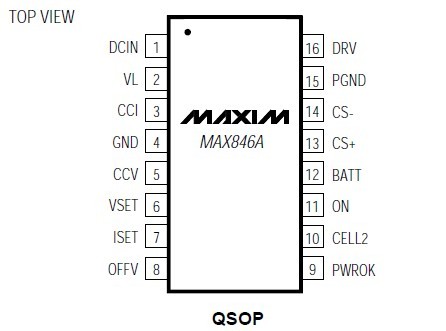

The MAX846AEEE is a cost-saving multichemistry batterycharger system that comes in a space-saving 16-pin QSOP. The MAX846AEEE allows different battery chemistries (Li-Ion, NiMH or NiCd cells) to be charged using one circuit. In its simplest application, the MAX846AEEE is a standalone, current-limited float voltage source that charges Li-Ion cells. It can also be paired up with a low-cost microcontroller (μC) to build a universal charger capable of charging Li-Ion, NiMH, and NiCd cells.

Parametrics

MAX846AEEE absolute maximum ratings: (1)DCIN, DRV, CS+, CS-, BATT to GND: -0.3V, +21V; (2)PGND to GND: ±0.3V; (3)VL to GND: -0.3V, 7V; (4)IPWROK: 10mA; (5)PWROK, ISET, CCI, CCV, OFFV, VSET, CELL2, ON to GND: -0.3V, VL + 0.3V; (6)CS+ to CS-: ±0.3V; (7)VL Short to GND: Continuous; (8)IDRV: 100mA; (9)Continuous Power Dissipation (TA = +70℃), QSOP (derate 8.3mW/℃ above +70℃): 667mW; (10)Operating Temperature Range: -40℃ to +85℃; (11)Junction Temperature: +150℃; (12)Storage Temperature Range: -65℃ to +160℃; (13)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX846AEEE features: (1)Multichemistry Charger System (Li-Ion, NiMH, NiCd); (2)Independent Voltage and Current Loops; (3)±0.5% Internal Reference for Li-Ion Cells; (4)Lowers Cost: Stands Alone or Uses Low-Cost μC; (5)Built-In 1% Linear Regulator Powers μC; (6)Linear Regulator Provides Reference to μC ADCs; (7)Built-In μC Reset; (8)Controls Low-Cost External PNP Transistor or P-Channel MOSFET; (9)Space-Saving 16-Pin QSOP; (10)Charging-Current-Monitor Output; (11)<1μA Battery Drain when Off.
