MAX395EWG

MAX395EWG, 8-channel, SPST analog switch, SOP, 17V, 941mW, 100Ω

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~20.00

PartNumber:: MAX395EWG

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Judy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-10

From Other Seller

Part Number:MAX395EWG
US $2.00 - 20.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

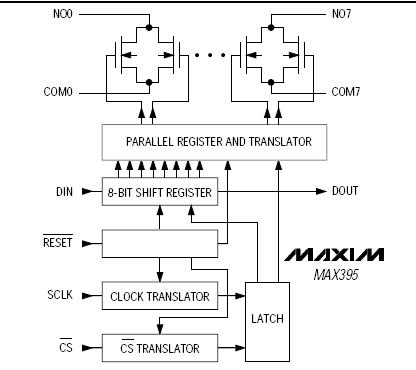

The MAX395EWG is an 8-channel, serially controlled, single-pole/single-throw (SPST) analog switch. It offers eight separately controlled switches. The switches conduct equally well in either direction. On-resistance (100Ω max) is matched between switches to 5Ω max and is flat (10Ω max) over the specified signal range. The MAX395EWG can operate continuously with dual power supplies ranging from ±2.7V to ±8V or a single supply between +2.7V and +16V. Each switch can handle rail-to-rail analog signals. The off leakage current is only 0.1nA at +25℃ or 5nA at +85℃. The applications of the MAX395EWG include Serial Data-Acquisition, Industrial and Process Systems, Control Systems, Avionics ATE Equipment, Audio Signal Routing, Networking.

Parametrics

MAX395EWG absolute maximum ratings: (1)Voltages Referenced to GND V+: -0.3V, +17V; (2)V-: -17V, +0.3V; (3)V+ to V-: -0.3V, +17V; (4)SCLK, CS, DIN, DOUT, RESET: -0.3V to (V+ + 0.3V); (5)NO, COM: (V- - 2V) to (V+ + 2V); (6)Continuous Current into Any Terminal: ±30mA; (7)Peak Current, NO_ or COM_(pulsed at 1ms,10% duty cycle): ±100mA; (8)Continuous Power Dissipation (TA = +70℃); (9)Narrow Plastic DIP (derate 13.33mW/℃ above +70℃): 1067mW; (10)Wide SO (derate 11.76mW/℃ above +70℃): 941mW; (11)Narrow CERDIP (derate 12.50mW/℃ above +70℃): 1000mW; (12)Operating Temperature Ranges: -40℃ to +85℃; (13)Storage Temperature Range: -65℃ to +150℃; (14)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX395EWG features: (1)SPI/QSPI Micro-wire Compatible Serial Interface; (2)8 Separately Controlled SPST Switches; (3)100Ω Signal Paths with ±5V Supplies; (4)Rail-to-Rail Signal Handling; (5)Asynchronous RESET Input; (6)Pin Compatible with Industry-Standard MAX335; (7)±2.7V to ±8V Dual Supplies; (8)+2.7V to +16V Single Supply; (9)＞2kV ESD Protection per Method 3015.7; (10)TTL/CMOS-Compatible Inputs (with +5V or ±5V Supplies).
