Product Summary
The M6117C is a RF amplifier.
Parametrics
M6117C absolute maximum ratings: (1)Ambient operating temperature: -55℃ to + 100℃; (2)Storage temperature: -62℃ to + 125℃; (3)Case temperature: + 125℃; (4)DC Voltage: + 18 V; (5) Continuous RF input power: + 13dBm; (6) Short term RF input power: 50Milliwatts (1 Minute Max.); (7) Maximum peak power: 0.5 Watt (3μsec Max.).
Features
M6117C features: (1) Low noise figure: <1.3 dB Typical; (2) Medium third order intercept: +28dBm typical; (3) Operating temp. -55 ℃ to +85 ℃; (4) Environmental screening available.

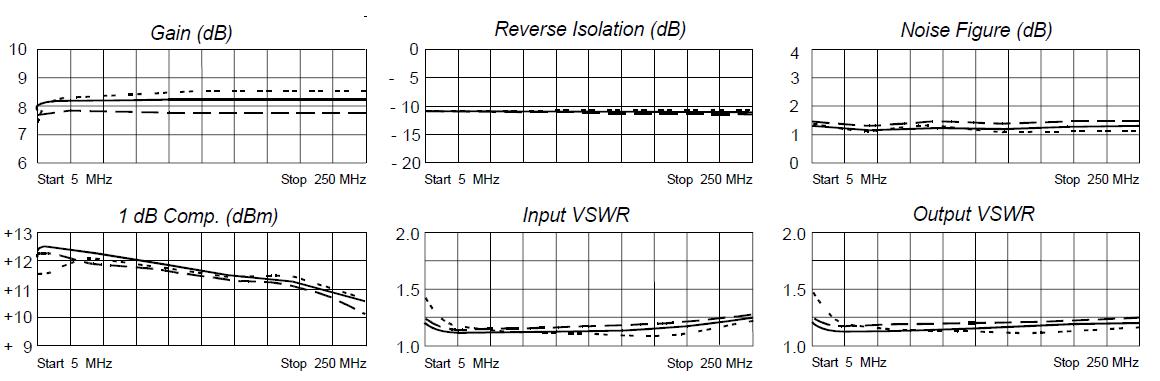

Diagrams
 |
