Product Summary

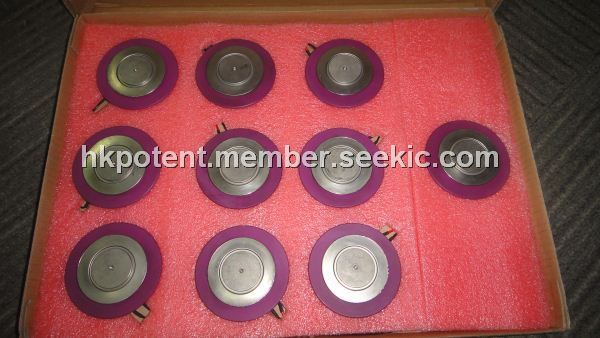

The EGP04-25 is a general-use Thyristor. The applications of the EGP04-25 include motor control applications, heater control applications, and Chemical use rectifiers.

Parametrics

EGP04-25 absolute maximum ratings: (1)VRRM: 2500V; (2)VDRM: 2500V; (3)IT (AV): 500A; (4)ITSM: 9000A; (5)UFGM: 10A; (6)PGM: 70W; (7)PG (AV): 10W; (8)VRGM: 5V; (9)Tj: -40℃ to +125℃; (10)Tstg: -40℃ to +125℃.

Features

EGP04-25 features: (1) Flat package type; (2) large di/dt; (3) Large dv/dt.

Diagrams

EGP04-25 dimension
