Product Summary
The LTC1164-8CSW is an Ultraselective, Low Power 8th Order Elliptic Bandpass Filter with Adjustable Gain. The passband of the LTC1164-8CSW is tuned with an external clock and the clock-to-center frequency ratio is 100:1. The -3dB pass bandwidth is typically 1% of the filter center frequency. The stopband attenuation of the LTC1164-8CSW is greater than 50dB. The lower and upper stopband frequencies are less than 0.96 •center frequency and greater than 1.04 •center frequency, respectively. The applications of the LTC1164-8CSW include Asynchronous Narrowband Signal Detectors, Low Frequency Asynchronous Demodulators, Handheld Spectrum Analyzers, In-Band Tone Signaling Detectors.
Parametrics
LTC1164-8CSW absolute maximum ratings: (1)Total Supply Voltage (V + to V –): 16.5V; (2)Power Dissipation: 700mW; (3)Burn-In Voltage: 16.5V; (4)Voltage at Any Input: (V––0.3V)≤VIN≤(V + + 0.3V); (5)Operating Temperature Range: 0℃ to 70℃; (6)Storage Temperature Range:–65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃; (8)Maximum Clock Frequency VS = ±7.5V: 720kHz; (9)VS = ±5V: 540kHz; (10)VS = Single 5V: 430kHz.
Features
LTC1164-8CSW features: (1)Ultraselectivity (50dB Attenuation at ±4% of Center Frequency); (2)Adjustable Passband Gain; (3)Noise Independent of Gain; (4)Filter Noise: 270mVRMS, VS = Single 5V Supply; (5)Clock-Tunable (Center Frequency = fCLK/100); (6)Center Frequencies up to 5kHz, VS = ±5V (Typical ISUPPLY = 3.2mA); (7)Center Frequencies up to 4kHz, VS = Single 5V Supply (Typical ISUPPLY = 2.3mA).

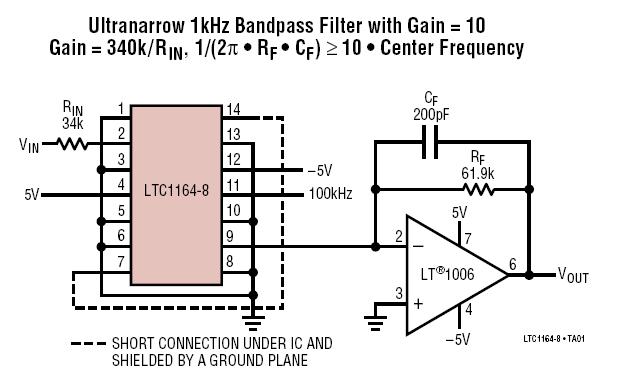

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1164-8CSW |
|
IC FILTR 8TH ORDR LOWPASS 16SOIC |
Data Sheet |
Negotiable |
|
||||
|
LTC1164-8CSW#TR |
|
IC FILTER LP 8TH ORDER 16SOIC |
Data Sheet |
Negotiable |
|
||||
