Product Summary

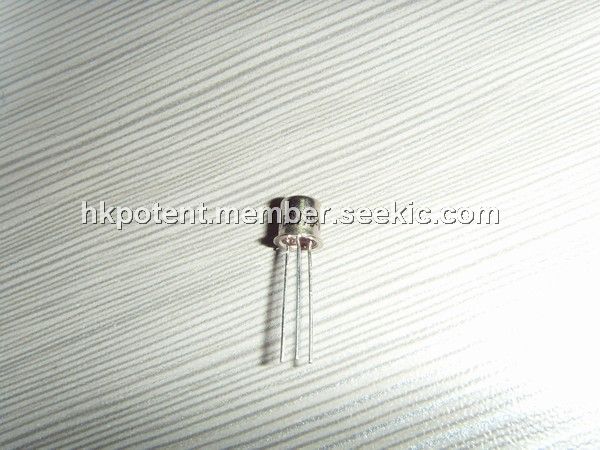

The CENTRAL SEMICONDUCTOR BCY79-VII is a kind of Silicon PNP Epitaxial Planar Transistor, mounted in a hermetically sealed metal case, designed for low noise amplifier and switching applications.

Parametrics

BCY79-VII absolute maximum ratings: (1)Collector-Base, Voltage VCBO: 45 V; (2)Collector-Emitter, Voltage VCEO: 45 V; (3)Emitter-Base Voltage, VEBO: 5.0 V; (4)Collector Current, IC: 100 mA; (5)Collector Current (Peak), ICM: 200 mA; (6)Base Current (Peak), IBM: 200 mA; (7)Power Dissipation, PD: 340 mW; (8)Power Dissipation(TC=25℃), PD: 1.0 W; (9)Operating and Storage, Junction Temperature TJ,Tstg: -65 to +200 ℃; (10)Thermal Resistance, θJA: 450 ℃/W; (11)Thermal Resistance, θJC: 150 ℃/W.

Diagrams

BCY79-VII circuit diagram
