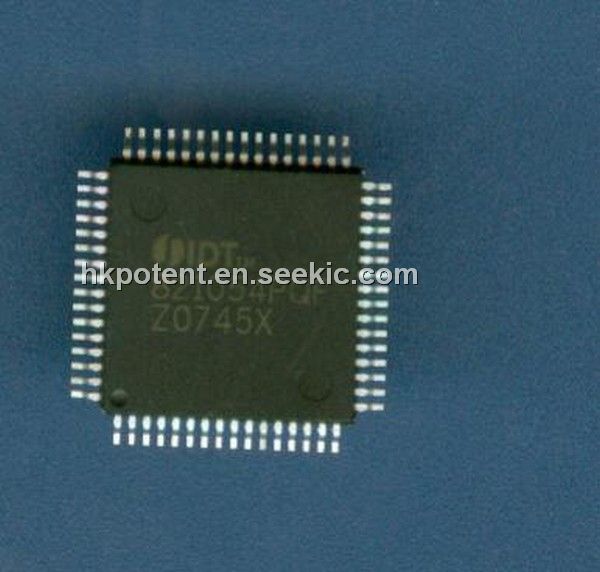

IDT821054PQF

IDT821054PQF, feature rich, single-chip, programmable 4- channel PCM CODEC, QFP64, 1.5W, -0.5 to 5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
101 ~ 500 :	0.90 / Piece
501 ~ 1000 :	0.80 / Piece

PartNumber:: IDT821054PQF

Brand:: Integrated Device Technology - IDT | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 100/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-24

From Other Seller

Part Number:IDT821054PQF
US $0.80 - 1.00
Quantity:

piece

Product Summary

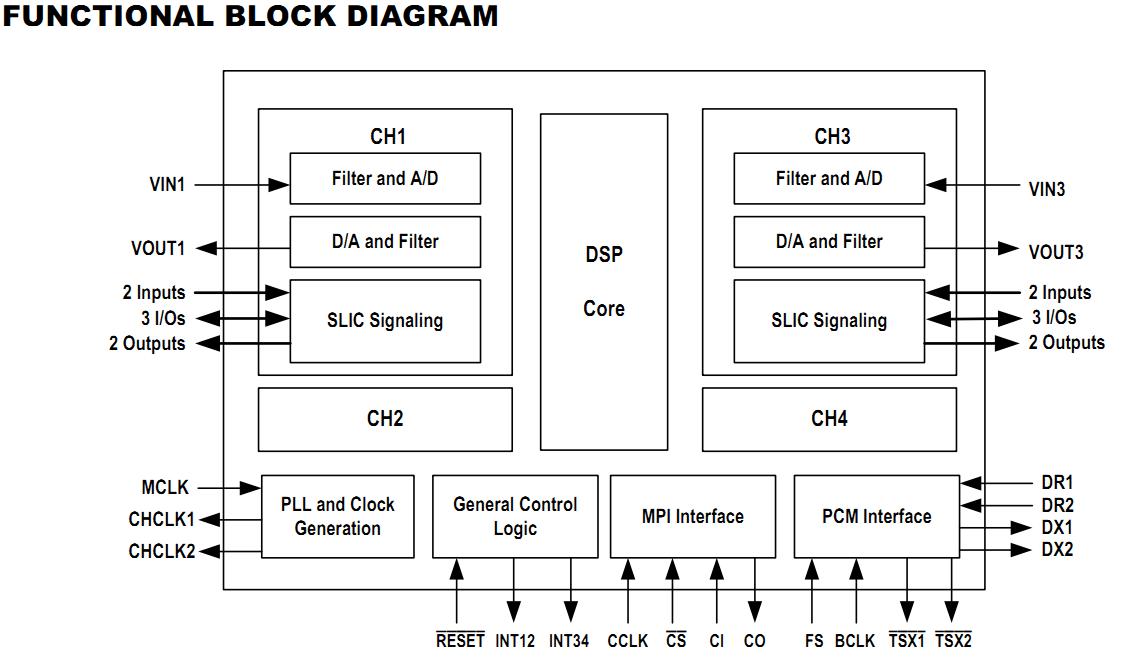

The IDT821054PQF is a feature rich, single-chip, programmable 4- channel PCM CODEC with on-chip filters. Besides the µ-Law/A-Law companding and linear coding/decoding (14 effective bits + 2 extra sign bits), the IDT821054PQF also provides 1 FSK generator for sending Caller-ID messages, 2 programmable tone generators per channel (which can generate ring signals) and 2 programmable chopper clocks for SLICs.

Parametrics

IDT821054PQF absolute maximum ratings: (1)Power supply voltage: 6.5 V max; (2)Voltage on Any Pin with respect to ground: -0.5 to 5.5 V; (3)Package power dissipation: 1.5 W; (4)Storage temperature: -65 to +150℃.

Features

IDT821054PQF features: (1)4-channel CODEC with on-chip digital filters; (2)Software selectable A/μ-law, linear code conversion; (3)Meets ITU-T G.711 - G.714 requirements ; (4)Programmable digital filters adapting to system demands: AC impedance matching; Transhybrid balance; Frequency response correction; Gain setting; (5)Supports two programmable PCM buses ; (6)Flexible PCM interface with up to 128 programmable time slots, data rate from 512 kbits/s to 8.192 Mbits/s; (7)MPI control interface; (8)Broadcast mode for coefficient setting; (9)7 SLIC signaling pins (including 2 debounced pins) per channel ; (10)Fast hardware ring trip mechanism.
