Product Summary

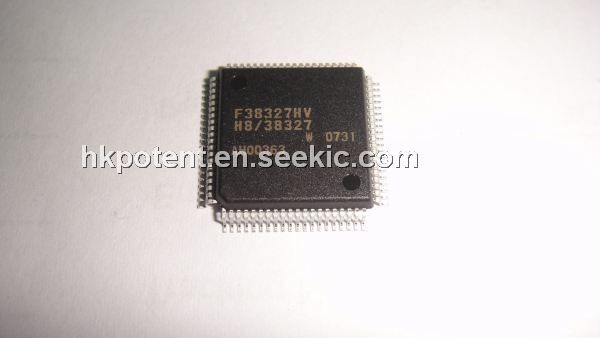

The HD64F38327HV is a single-chip microcomputer. Built around the high-speed H8/300L CPU and equipped with peripheral system functions on-chip.

Parametrics

HD64F38327HV absolute maximum ratings: (1)Power supply voltage VCC, CVCC: -0.3 to +7.0V; (2)Analog power supply voltage AVCC: -0.3 to +7.0V; (3)Programming voltage VPP: -0.3 to +13.0V; (4)Input voltage Ports other than Port B Vin: -0.3 to VCC +0.3V; (5)Port B AVin: -0.3 to AVCC +0.3 V; (6)Operating temperature Topr: -20 to +75℃; (7)Storage temperature Tstg: -55 to +125℃.

Features

HD64F38327HV features: (1)High-speed H8/300L CPU; (2)36 interrupt sources; (3)Two on-chip clock pulse generators; (4)Seven power-down modes; (5)Large on-chip memory; (6)55 I/O pins; (7)9 input pins; (8)Six on-chip timers; (9)Two serial communication interface channels on chip; (10)Pulse-division PWM output for reduced ripple; (11)Successive approximations using a resistance ladder; (12)LCD controller/driver equipped with a maximum of 32 segment pins and four common pins.

Diagrams

HD64F38327HV block diagram
