Product Summary

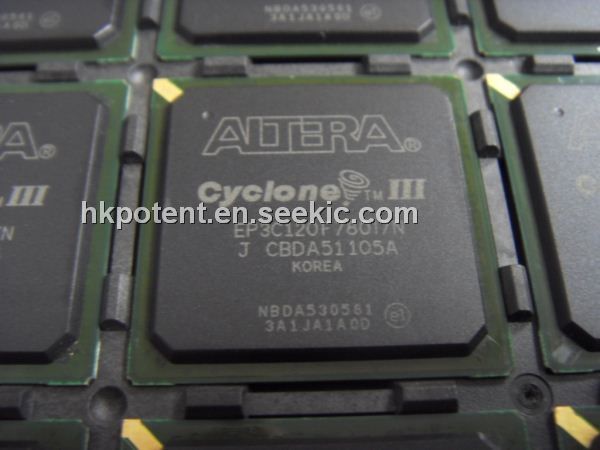

The EP3C120F780I7N is an FPGA. Its package is BGA-484.
Parametrics
EP3C120F780I7N absolute maximum ratings: (1)VCCINT, Supply voltage for internal logic: –0.5 to 1.8 V; (2)VCCIO, Supply voltage for output buffers: –0.5 to 3.9 V; (3)VCCA, Supply (analog) voltage for PLL regulator: –0.5 to 3.75 V; (4)VCCD_PLL, Supply (digital) voltage for PLL: –0.5 to 1.8 V; (5)VI, DC input voltage: –0.5 to 3.95 V; (6)IOUT, DC output current, per pin: –25 to 40 mA; (7)VESDHBM, Electrostatic discharge voltage using the human body model: NA to ±2000 V; (8)VESDCDM, Electrostatic discharge voltage using the charged device model: NA to ±500 V; (9)TSTG, Storage temperature: –65 to 150 ℃.
Features
EP3C120F780I7N features: (1)implemented in a system; (2)rated according to a set of defined parameters; (3)designers must consider the operating requirements in this document; (4)offered in commercial, industrial, and automotive grades.

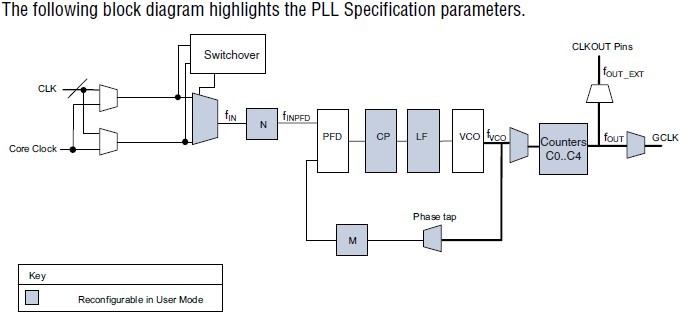

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP3C120F780I7N |
|
IC CYCLONE III FPGA 120K 780FBGA |
Data Sheet |
|
|
||||||
