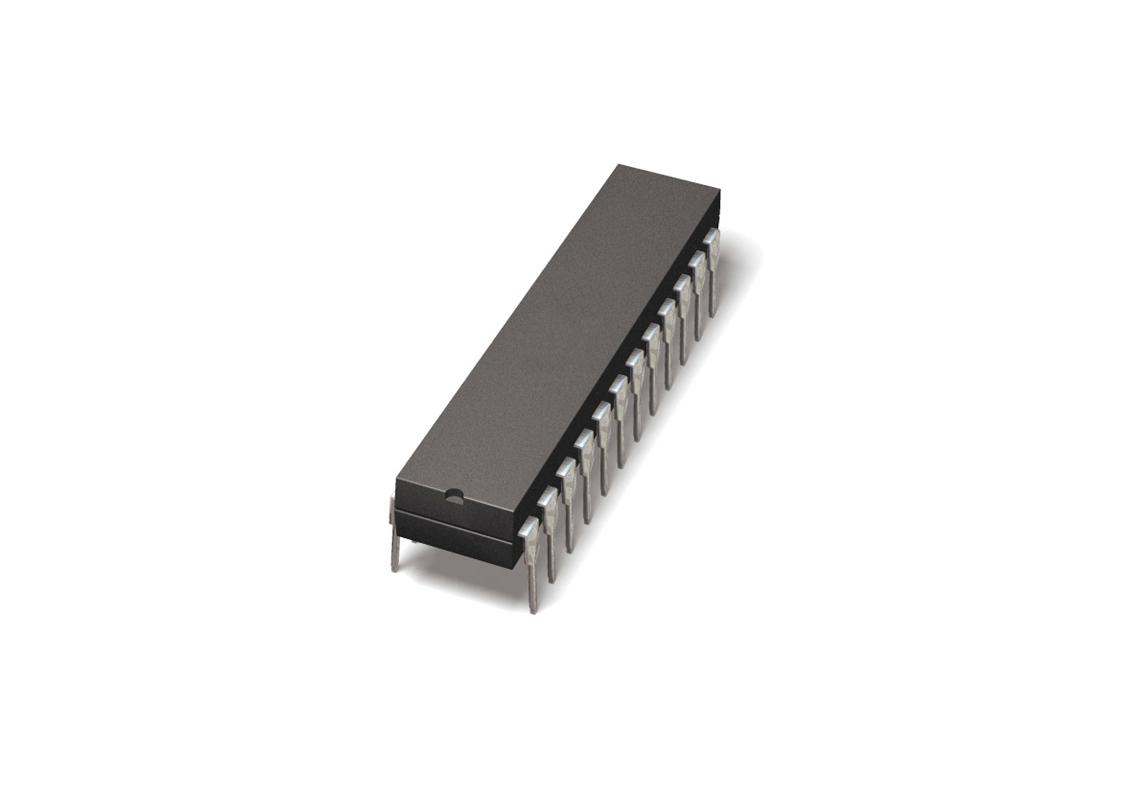

CS5516-AP

A/D converter, DIP, 16-bit, -0.3V to -5.5V, 40mW, CS5516-AP, 50/60 Hz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $55.00~99.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $55.00~99.00

PartNumber:: CS5516-AP

Brand:: Cirrus Logic - Cirrus | Pack: DIP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Judy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-06

From Other Seller

Part Number:CS5516-AP
US $55.00 - 99.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

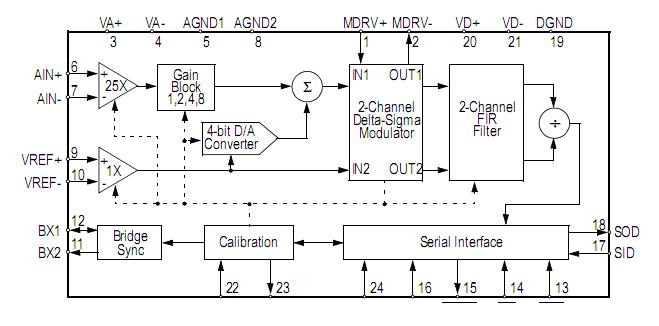

The CS5516-AP is an A/D converter. It is complete solution for digitizing low level signals from strain gauges, load cells, and pressure transducers. Any family of mV output transducers, including that requiring bridge excitation, can be interfaced directly to the CS5516. The CS5516-AP offers an on-chip software programmable instrumentation amplifier block, choice of DC or AC bridge excitation, and software selectable reference and signal demodulation. The CS5516-AP uses delta-sigma modulation to achieve 16-bit resolution at output word rates up to 60Sps.

Parametrics

CS5516-AP absolute maximum ratings: (1)DC Power Supplies: Positive Digital: -0.3V to (VA+)+0.3V, Negative Digital: -0.3V to -5.5V, Positive Analog:-0.3V to 5.5V, Negative Analog:+0.3V to -5.5V; (2)Input Current, Any Pin Except Supplies:±10mA; (3)Analog Input Voltage:(VA-)-0.3V to (VA+)+0.3 V; (4)Digital Input Voltage: VIND -0.3V to (VD+)+0.3 V; (5)Ambient Operating Temperature:-55℃ to 125℃; (6)Storage Temperature:-65℃ to 150℃.

Features

CS5516-AP features: (1)On-chip Instrumentation Amplifier; (2)On-chip Programmable Gain Amplifier; (3)On-Chip 4-Bit D/A For Offset Removal; (4)Dynamic Excitation Options; (5)Linearity Error: ±0.0015% FS,20-bit, No Missing Codes ; (6)CMRR at 50/60 Hz > 200 dB; (7)System Calibration Capability with calibration ; (8)read/write option; (9)3-, 4-, or 5-wire Serial Communications Port; (10)Low Power Consumption: 40mW, 10μW Standby Mode for Portable applications.
