Product Summary

The AT27BV4096-12JU is a high performance, low power, low voltage 4,194,304 bit onetime programmable read only memory (OTP EPROM) organized as 256K by 16 bits. The AT27BV4096-12JU requires only one supply in the range of 2.7V to 3.6V in normal read mode operation. The by-16 organization makes this part of theAT27BV4096-12JU ideal for portable and handheld 16 and 32 bit microprocessor based systems using either regulated or unregulated battery power.

Parametrics

AT27BV4096-12JU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V; (4)Voltage on A9 with Respect to Ground: -2.0V to +14.0V; (5)VPP Supply Voltage with Respect to Ground: -2.0V to +14.0V.

Features

AT27BV4096-12JU features: (1)Fast Read Access Time: 120 ns; (2)Dual Voltage Range Operation; (3)Unregulated Battery Power Supply Range, 2.7V to 3.6V or Standard 5V±10% Supply Range; (4)Pin Compatible with JEDEC Standard AT27C4096; (5)Low Power CMOS Operation; (6)20mA max. (less than 1mA typical) Standby for VCC = 3.6V; (7)29mW max. Active at 5 MHz for VCC = 3.6V; (8)JEDEC Standard Surface Mount Packages 44-Lead PLCC; (9)40-Lead TSOP (10 x 14mm); (10)High Reliability CMOS Technology; (11)2,000V ESD Protection; (12)200mA Latch-up Immunity; (13)Rapid Programming algorithm: 100 ms/word (typical); (14)CMOS and TTL Compatible Inputs and Outputs; (15)JEDEC Standard for LVTTL and LVBO; (16)Integrated Product Identification Code; (17)Commercial and Industrial Temperature Ranges.

Diagrams

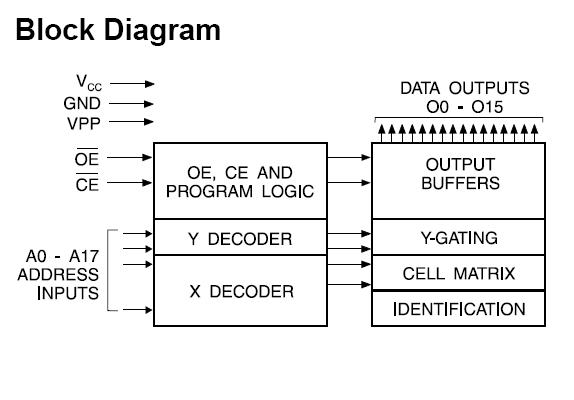

AT27BV4096-12JU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT27BV4096-12JU
AT27BV4096-12JU

Atmel

EPROM 4Mb (256Kx16) OTP 2.7-3.6V 120ns

Data Sheet

Negotiable
