ADF4110BRUZ

Product Summary

The ADF4110BRUZ is a frequency synthesizer can be used to implement local oscillators in the upconversion and downconversion sections of wireless receivers and transmitters. The device consists of a low-noise digital PFD (Phase Frequency Detector), a precision charge pump, a programmable reference divider, programmable A and B counters and a dual-modulus prescaler (P/P+1). The A (6-bit) and B (13-bit) counters, in conjunction with the dual modulus prescaler (P/P+1), implement an N divider (N = BP + A). In addition, the 14-bit reference counter (R Counter), allows selectable REFIN frequencies at the PFD input. The applications of the ADF4110BRUZ include Base Stations for Wireless Radio (GSM, PCS, DCS, CDMA, WCDMA), Wireless Handsets (GSM, PCS, DCS, CDMA, WCDMA), Wireless LANS, Communications Test Equipment, CATV Equipment.

Parametrics

ADF4110BRUZ absolute maximum ratings: (1)AVDD to GND3: -0.3 V to +7 V; (2)AVDD to DVDD: -0.3 V to +0.3 V; (3)VP to GND: -0.3 V to +7 V; (4)VP to AVDD: -0.3 V to +5.5 V; (5)Digital I/O Voltage to GND: -0.3 V to VDD + 0.3 V; (6)Analog I/O Voltage to GND: -0.3 V to VP + 0.3 V; (7)REFIN, RFINA, RFINB to GND: -0.3 V to VDD + 0.3 V; (8)Operating Temperature Range, Industrial (B Version): -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Maximum Junction Temperature: 150℃; (11)TSSOP θJA Thermal Impedance: 150.4℃/W; (12)CSP θJA Thermal Impedance (Paddle Soldered): 122℃/W; (13)CSP θJA Thermal Impedance (Paddle Not Soldered): 216℃/W; (14)Lead Temperature, Soldering, Vapor Phase (60 sec): 215℃; Infrared (15 sec): 220℃.

Features

ADF4110BRUZ features: (1)ADF4110: 550 MHz; (2)2.7 V to 5.5 V Power Supply; (3)Separate Charge Pump Supply (VP) Allows Extended; (4)Tuning Voltage in 3 V Systems; (5)Programmable Dual Modulus Prescaler 8/9, 16/17,; (6)32/33, 64/65; (7)Programmable Charge Pump Currents; (8)Programmable Antibacklash Pulsewidth; (9)3-Wire Serial Interface; (10)Analog and Digital Lock Detect; (11)Hardware and Software Power-Down Mode.

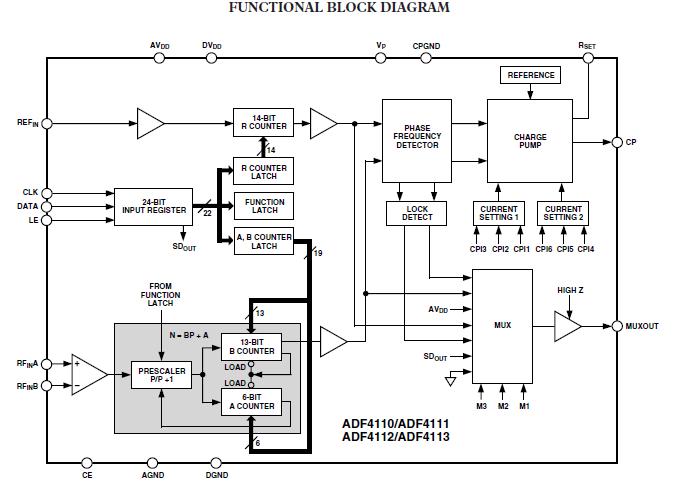

Diagrams
