Product Summary

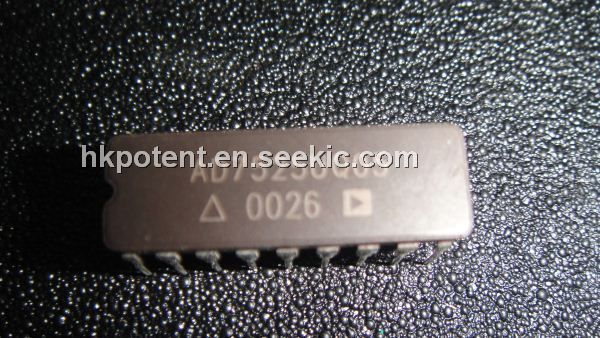

The AD7525U005 is a monolithic CMOS 3 1/2 digit BCD digitally controlled potentiometer designed for precision incremental voltage-divider applications. With the addition of an external op amp, the output of the AD7525U005 can be digitally controlled from 0 to 1.999 Vin with resolution of 0.001 Vin. AC or DC voltage up to ±10V can be applied to the input providing high application flexibility in field such as audio gain control, etc.

Parametrics

AD7525U005 absolute maximum ratings: (1)VDD to GND: -0.3 to 17V; (2)Vin to GND: ±25V; (3)RFB to GNB: ±25V; (4)Digital input voltage to GND: -0.3 to VDD V; (5)VPINI to GND: -0.3 to VDD V; (6)Power dissipation, Plastic suffix N , TO +70℃: 670mW; derates above +70℃ by: 6mW/℃.

Features

AD7525U005 features: (1)Resolution: 3 1/2 digit BCD; (2)Nonlinearity: ±1/2 LSB Tmin to Tmax; (3)Gain error: ±0.05% FS; (4)Excellent repeatability accuracy; (5)Low power dissipation.

Diagrams

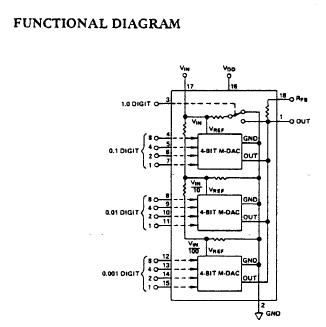

AD7525U005 block diagram
