Product Summary

The AD712JN is a high speed, precision, monolithic operational amplifier offering high performance at very modest prices. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps. The superior ac and dc performance of this op amp makes the AD712JN suitable for active filter applications.

Parametrics

AD712JN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation1 Input Voltage2: ±18 V; (3)Output Short-Circuit Duration: Indefinite; (4)Differential Input Voltage: +VS and -VS; (5)Storage Temperature Range: Q-Suffix: -65℃ to +150℃; (6)N-Suffix and R-Suffix: -65℃ to +125℃; (7)Operating Temperature Range: 0℃ to 70℃; (8)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

AD712JN features: (1)Enhanced replacement for LF412 and TL082; (2)AC performance, Settles to ±0.01% in 1.0 μs; 16 V/μs minimum slew rate (AD712J); 3 MHz minimum unity-gain bandwidth (AD712J); (3)DC performance, 200 V/mV minimum open-loop gain (AD712K); Surface mount available in tape and reel in accordance with the EIA-481A standard; MIL-STD-883B parts available; Single version available: AD711; Quad version: AD713; Available in PDIP, SOIC_N, and CERDIP packages.

Diagrams

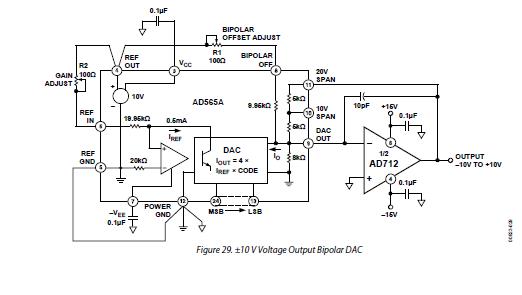

AD712JN block diagram
