Product Summary

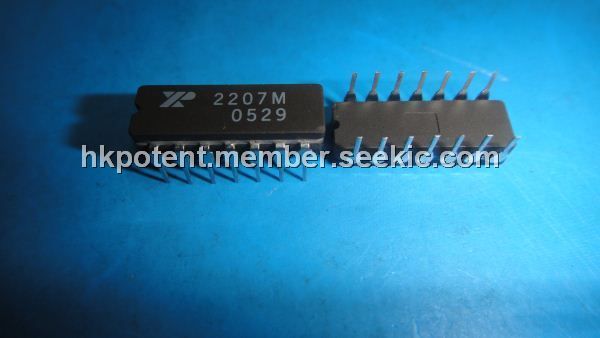

The XR2207M is a monolithic voltage-controlled oscillator (VCO) integrated circuit featuring excellent frequency stability and a wide tuning range. The circuit provides simultaneous triangle and squarewave outputs over a frequency range of 0.01Hz to 1MHz. The XR2207M is ideally suited for FM, FSK, and sweep or tone generation, as well as for phase-locked loop applications. The applications of the XR2207M include FSK Generation, Voltage and Current-to-Frequency Conversion, Stable Phase-Locked Loop, Waveform Generation Triangle, Sawtooth, Pulse, Squarewave, FM and Sweep Generation.

Parametrics

XR2207M absolute maximum ratings: (1)Power Supply: 26V; (2)Storage Temperature Range: -65℃ to +150℃; (3)Power Dissipation (package limitation); (4)Ceramic package: 750mW, Derate above +25℃: 6mW/℃; (5)Plastic package: 625mW, Derate above +25℃: 5mW/℃; (6)SOIC package: 500mW, Derate above +25℃: 4mW/℃.

Features

XR2207M features: (1)Excellent Temperature Stability (20ppm/℃); (2)Linear Frequency Sweep; (3)Adjustable Duty Cycle (0.1% to 99.9%); (4)Two or Four Level FSK Capability; (5)Wide Sweep Range (1000:1 Minimum); (6)Logic Compatible Input and Output Levels; (7)Wide Supply Voltage Range (±4V to ±13V); (8)Low Supply Sensitivity (0.1% /V); (9)Wide Frequency Range (0.01Hz to 1MHz); (10)Simultaneous Triangle and Squarewave Outputs.

Diagrams

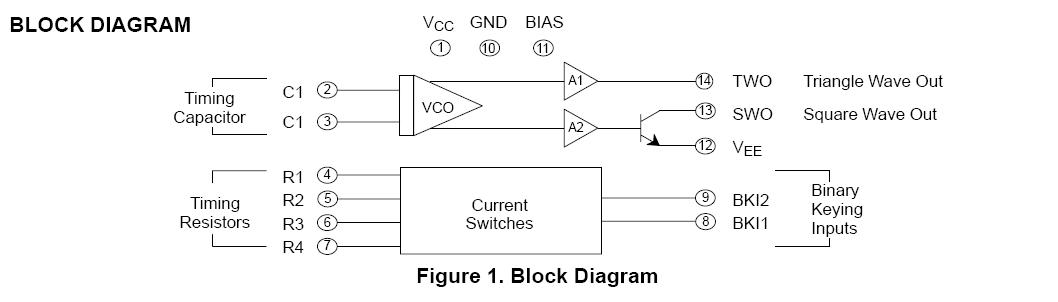

XR2207M block diagram
