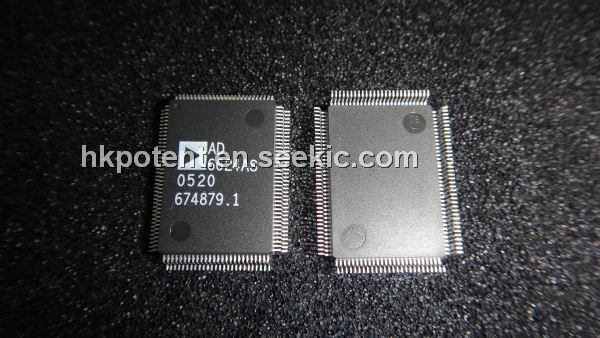

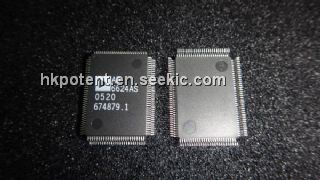

Product Summary
The AD6624A is a four-channel (quad) digital receive signal processor (RSP) with four cascaded signal-processing elements: a frequency translator, two fixed-coefficient decimating filters, and a programmable-coefficient decimating filter. The AD6624A is part of Analog Devices’ SoftCell multicarrier transceiver chipset designed for compatibility with Analog Devices’ family of high sample rate IF sampling ADCs. The applications of the AD6624A include Multicarrier, Multimode Digital Receivers GSM, IS136, EDGE, PHS, IS95, Micro and Pico Cell Systems, Wireless Local Loop, Smart Antenna Systems, Software Radios, In-Building Wireless Telephony.
Parametrics
AD6624A absolute maximum ratings: (1)Supply Voltage: 3.6 V; (2)Input Voltage: -0.3 V to +5.3 V (5 V Tolerant); (3)Output Voltage Swing: -0.3 V to VDDIO + 0.3 V; (4)Load Capacitance: 200 pF; (5)Junction Temperature Under Bias: 125℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Lead Temperature (5 sec): 280℃.
Features
AD6624A features: (1)100 MSPS Wideband Inputs (14 Linear Bits Plus 3 RSSI); (2)Dual High-Speed Data Input Ports; (3)Four Independent Digital Receivers in Single Package; (4)Digital Resampling for Noninteger Decimation Rates; (5)Programmable Decimating FIR Filters; (6)Programmable Attenuator Control for Clip Prevention and External Gain Ranging via Level Indicator; (7)Flexible Control for Multicarrier and Phased Array; (8)3.3 V I/O, 2.5 V CMOS Core; (9)User-Configurable Built-In Self-Test (BIST) Capability; (10)JTAG Boundary Scan.

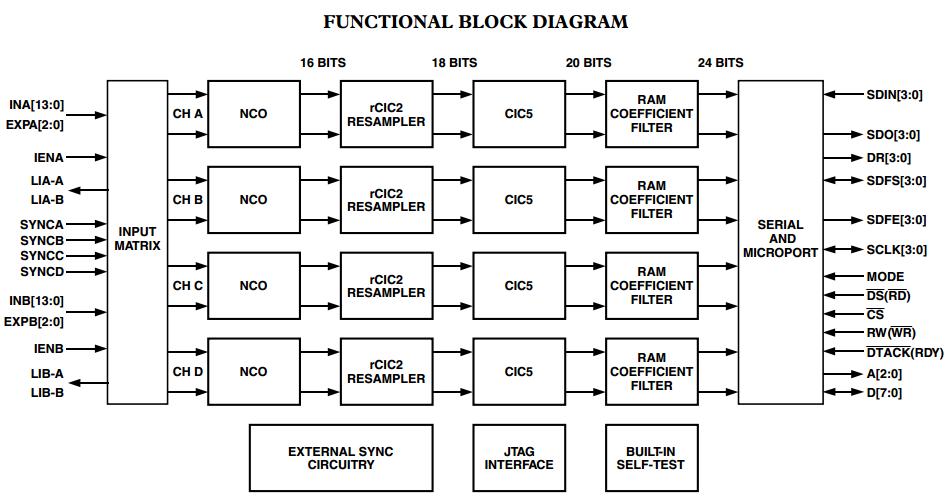

Diagrams
