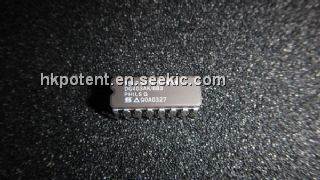

5962-8976301MEA

5962-8976301MEA, 8-Channel Wideband Video Multiplexer, CDIP, -0.3 V to +21 V, 40mA, Harris Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.00 / Piece
501 ~ 1000 :	1.00 / Piece

PartNumber:: 5962-8976301MEA

Brand:: Harris Corporation - Harris | Pack: CDIP | D/C: 03+

Availability:: Supply Ability: 200/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Judy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-26

From Other Seller

Part Number:5962-8976301MEA
US $1.00 - 3.00
Quantity:

piece

Product Summary

The 5962-8976301MEA is a digitally selectable 8-channel multiplexer. On-chip TTL-compatible address decoding logic and latches with data readback are included to simplify the interface to a microprocessor data bus. The low on-resistance and low capacitance of the these devices make it ideal for wideband data multiplexing and video and audio signal routing in channel selectors and crosspoint arrays. An optional negative supply pin allows the handling of bipolar signals without dc biasing. The applications of the 5962-8976301MEA include Wideband Signal Routing and Multiplexing, Video Switchers, ATE Systems, Infrared Imaging, Ultrasound Imaging.

Parametrics

5962-8976301MEA absolute maximum ratings: (1)V+ to GND: -0.3 V to +21 V; (2)V+ to V–: -0.3 V to +21 V; (3)V– to GND: -10 V to +0.3 V; (4)VL: 0 V to (V+) + 0.3 V; (5)Digital Inputs: (V-) -0.3 V to (VL) + 0.3 V or 20 mA, whichever occurs first; (6)VS, VD: (V-) -0.3 V to (V–) + 14 V or 20 mA, whichever occurs first; (7)Current (any terminal) Continuous: 20 mA; (8)Current(S or D) Pulsed l ms 10% Duty: 40 mA.

Features

5962-8976301MEA features: (1)Wide Bandwidth: 500 MHz; (2)Very Low Crosstalk: -97 dB @ 5 MHz; (3)On-Board TTL-Compatible Latches with Readback; (4)Optional Negative Supply; (5)Low rDS(on): 45Ω; (6)Single-Ended or Differential Operation; (7)Latch-up Proof.
