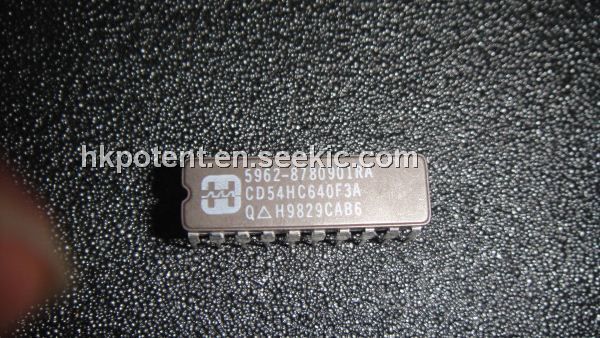

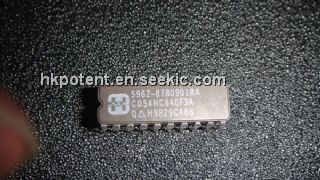

Product Summary
The 5962-8780901RA is an octal bus transceiver. The octal bus transceiver is designed for asynchronous two-way communication between data buses. The 5962-8780901RA transmits data from the A bus to the B bus or from the B bus to the A bus, depending upon the level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses are effectively isolated.
Parametrics
5962-8780901RA absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Package thermal impedance, θJA (see Note 2): DW package: 58℃/W; (7)N package: 69℃/W; NS package: 60℃/W; PW package: 83℃/W; (8)Storage temperature range, Tstg: -65℃ to 150℃.
Features
5962-8780901RA features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)High-Current 3-State Outputs Can Drive Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 8 ns; (5)±6-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Inverting Logic.

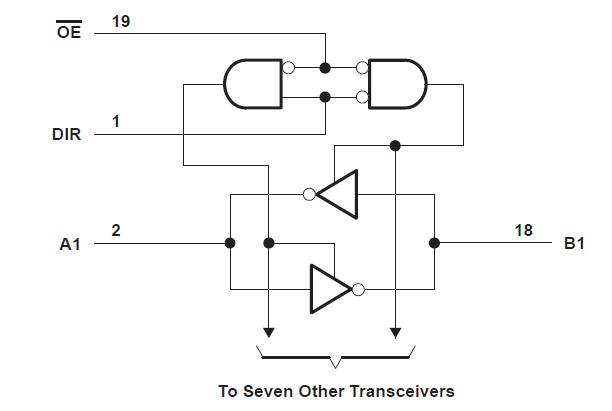

Diagrams
