Product Summary

The SKM453A020 is a Power MOSFET Module. The applications of the SKM453A020 include DC servo and robot drives, DC choppers, UPS equipment, plasma cutting, not suitable for linear amplification.

Parametrics

SKM453A020 absolute maximum ratings: (1)VDS: 200V; (2)ID @ TS=25(80)℃: 450(400)A; (3)IDM: 1350A; (4)VGS: ±20V; (5)TVj,(Tstg): -40℃ to +150℃ (125℃); (6)Visol: 2500V; (7)IF=-IS: 450A; (8)IFM=-ISM: 1600A.

Features

SKM453A020 features: (1)N Channel, enhancement mode; (2)Avalanche characteristic; (3)Short internal connections avoid oscillations; (4)Isolated copper Baseplate using AL2O3 ceramic Direct Copper Bonding Technology; (5)All electrical connections on tap for easy busbaring; (6)Large clearances (12mm) and creepage distances (20mm).

Diagrams

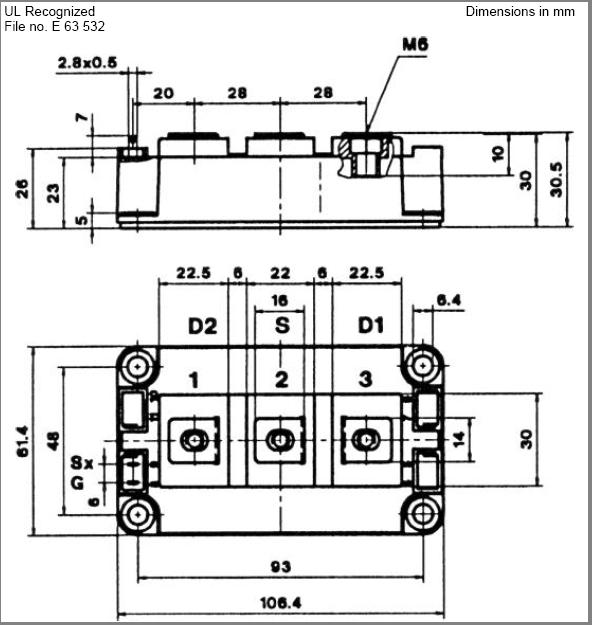

SKM453A020 dimension
