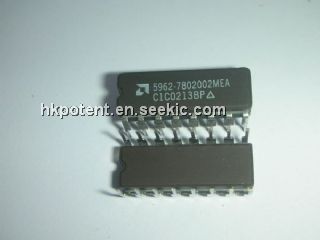

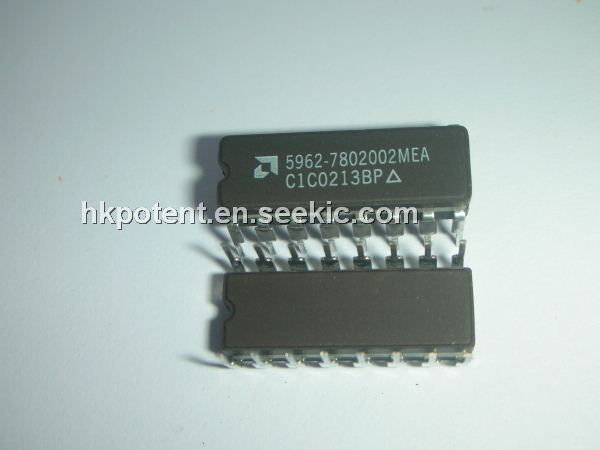

The 5962-7802002MEA is a quadruple differential line receiver for balanced and unbalanced digital data transmission. The enable function is common to all four receivers and offers a choice of active-high or active-low input. The 3-state outputs of the 5962-7802002MEA permit connection directly to a bus-organized system. Fail-safe design ensures that, if the inputs are open, the outputs always are high.
Parametrics
5962-7802002MEA absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: Any differential input: ±25 V; Other inputs: 7 V; (3)Differential input voltage, VID: ±25 V; (4)Case temperature for 60 seconds, TC: FK package: 260℃; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or N package: 260℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J package: 300℃; (7)Storage temperature range, Tstg: -65℃ to 150℃.
Features
5962-7802002MEA features: (1)Input Hysteresis: 50 mV Typical; (2)Operate From a Single 5-V Supply; (3)Low-Power Schottky Circuitry; (4)3-State Outputs; (5)Complementary Output-Enable Inputs; (6)Input Impedance: 12 kΩ Min; (7)Designed to Be Interchangeable With.

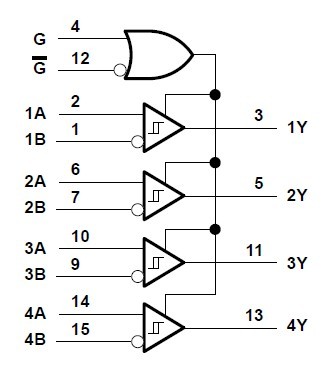

Diagrams
