Product Summary

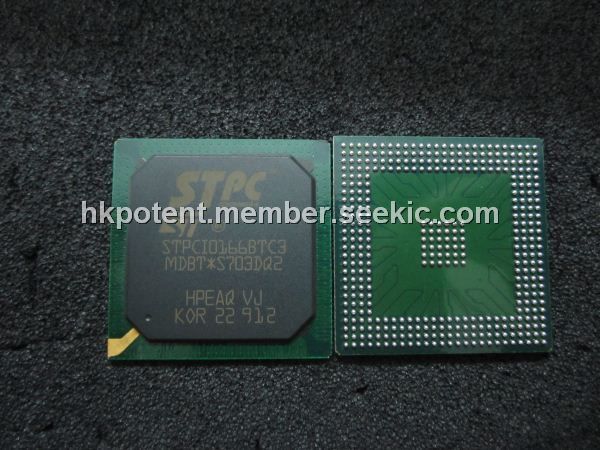

The STPCI0166BTC3 is a PC Compatible Embedded Microprocessor. It integrates a fully static x86 processor, fully compatible with standard fifth generation x86 processors, and combines it with powerful chipset, graphics, TFT, PC-Card, Local Bus, keyboard, mouse, serials and parallel interfaces to provide a single Industrial oriented PC compatible subsystem on a single device. The performance of the STPCI0166BTC3 is comparable with the performance of a typical P5 generation system. The STPCI0166BTC3 is packaged in a 388 Plastic Ball Grid Array (PBGA).
Parametrics
STPCI0166BTC3 absolute maximum ratings: (1)VDDx DC Supply Voltage -0.3 to 4.0V ; (2)VI, VO Digital Input and Output Voltage: -0.3 to VDD + 0.3 V; (3)V5T 5Volt Tolerance: 2.5 to 5.5; (4)TSTG Storage Temperature: -40 to +150℃; (5)TOPER Operating Temperature: 0 to +70℃; (6)PTOT Maximum Power Dissipation: 4.8W.
Features
STPCI0166BTC3 features: (1)powerful X86 processor; (2)64-bit bus architecture; (3)64-BIT 66MHz DRAM controller; (4)SVGA graphics controller; (5)135MHz RAMDAC; (6)UMA architecture; (7)TFT display controller; (8)PCI master / slave / arbiter; (9)local bus interface; (10)ISA (master/slave) interface -including the IPC; (11)PC-CARD interface; (12)I/O features; (13)IPC; (14)power management.

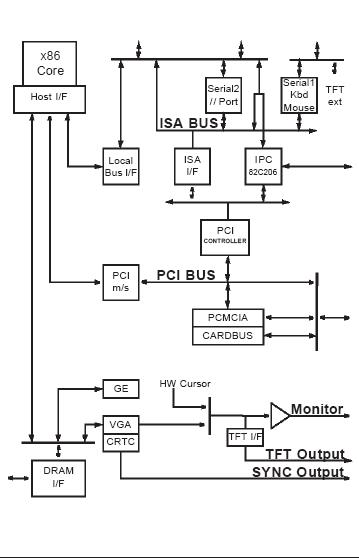

Diagrams
