Product Summary

The AT45DB642D-CNU is a 2.7-volt, dual-interface sequential access Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The device supports RapidS serial interface and Rapid8 8-bit interface.

Parametrics

Absolute maximum ratings: (1)Temperature under Bias :-55°C to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (except VCC but including NC pins)with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V.

Features

Features: (1)Single 2.7V - 3.6V Supply; (2)JEDEC Standard Manufacturer and Device ID Read; (3)100,000 Program/Erase Cycles Per Page Minimum; (4)Data Retention – 20 Years; (5)Green (Pb/Halide-free/RoHS Compliant) Packaging Options; (6)Temperature Range,Industrial: -40℃ to +85℃.

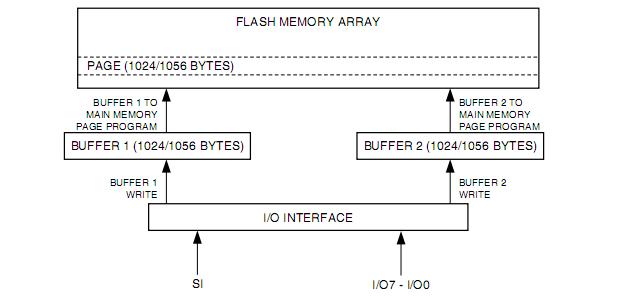

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT45DB642D-CNU
AT45DB642D-CNU

Atmel

Flash 64M 8 I/O Pins Ser Rapid8 1056B 2.7V

Data Sheet

0-1: $3.37
1-10: $3.13
10-25: $2.81
25-100: $2.41
