Product Summary
The ST10F168Q6 is a 16-bit single-chip CMOS microcontroller. It combines high CPU performance (up to 12.5 million instructions per second) with high peripheral functionality and enhanced I/O capabilities. The ST10F168Q6 also provides on-chip high-speed Flash memory, on-chip high-speed RAM, and clock generation via PLL.
Parametrics
ST10F168Q6 absolute maximum ratings: (1)VDD, Voltage on VDD pins with respect to ground1: -0.5 to +6.5 V; (2)VIO, Voltage on any pin with respect to ground1: -0.5 to (VDD +0.5) V; (3)IOV, Input Current on any pin during overload condition1: -10 to +10 mA; (4)ITOV, Absolute Sum of all input currents during overload condition1: |100 mA| mA; (5)Ptot Power Dissipation1: 1.5 W; (6)TA, Ambient Temperature under bias for - Q61: -40 to +85℃; Ambient Temperature under bias for - Q31: -40 to +125℃; (7)Tstg, Storage Temperature1: -65 to +150℃.
Features
ST10F168Q6 features: (1)16-bit cpu with 4-stage pipeline; (2)80ns instruction cycle time at 25mhz cpu clock; (3)400ns 16 x 16-bit multiplication; (4)800ns 32 / 16-bit division; (5)enhanced boolean bit manipulation facilities; (6)additional instructions to support hll and operating systems; (7)single-cycle context switching support; (8)256k byte on-chip flash memory; (9)10k erasing / programming cycles; (10)up to 16m byte linear address space for code and data (5m byte with can); (11)2k byte on-chip internal ram (iram); (12)6k byte on-chip extension ram (xram); (13)20 year data retention time; (14)programmable external bus characte-ristics for different address ranges; (15)8-bit or 16-bit external data bus; (16)multiplexed or demultiplexed external address / data buses; (17)five programmable chip-select signals; (18)hold-acknowledge bus arbitration support.

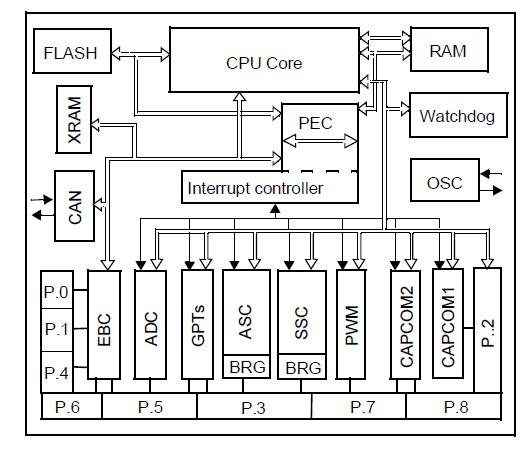

Diagrams
