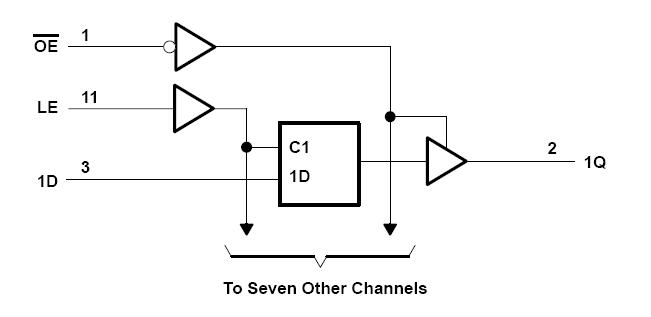

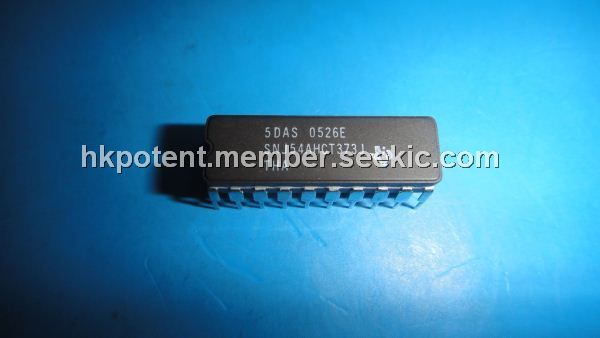

The SNJ54AHCT373J is an octal transparent d-type latch with 3-state outputs. When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is low, the Q outputs are latched at the logic levels of the D inputs.
Parametrics
SNJ54AHCT373J absolute maximum ratings: (1)Supply voltage range, VCC:–0.5 V to 7 V; (2)Input voltage range, VI:–0.5 V to 7 V; (3)Output voltage range, VO:–0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI＜0): –20mA; (5)Output clamp current, IOK (VO＜0 or VO＞VCC): ±20mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25mA; (7)Continuous current through VCC or GND: ±75mA; (8)Package thermal impedance, θJA: 70℃/W; (9)Storage temperature range, Tstg: -65℃ to +150℃.
Features
SNJ54AHCT373J features: (1)Inputs Are TTL-Voltage Compatible; (2)Latch-Up Performance Exceeds 250mA Per JESD 17; (3)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101).
