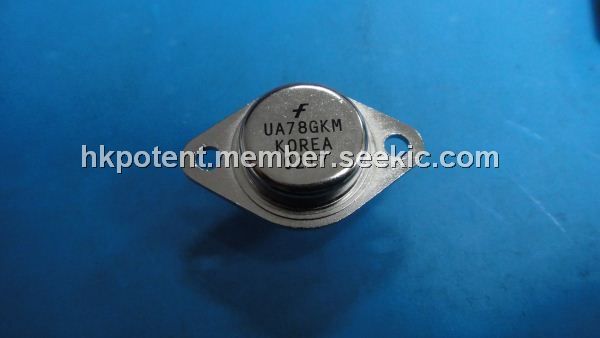

Product Summary

The UA78GKM is a 4-terminal adjustable voltage regular. The UA78GKM is designed to deliver continuous load currents of up to 1.0A with a maximum input voltage of +40V for the positive regular UA78GKM. Output current capability can be increased to greater than 1.0A through use of one or more external transistors. The Output voltage range of the UA78GKM positive voltage regulator is +5V to +30V. For systems requiring both a positive and negative, the UA78GKM is excellent for use as a dual tracking regular with appropriate external circuitry. It is constructed using the Fairchild Planar process.

Parametrics

UA78GKM absolute maximum ratings: (1)Storage Temperature Range: -65℃ to +150℃; (2)Operating Junction Temperature Range: 0℃ to 150℃; (3)Lead Temperature (soldering 10s): 265℃; (4)Input Voltage: +40V; (5)Control Lead Voltage: 0V≤V-≤VO.

Features

UA78GKM features: (1) Output Current In Excess of 1A; (2) UA78GKM Positive Output +5V to 30V; (3) Internal Thermal Overload Protection; (4) Internal Short Circuit Protection; (5) Output Transistor Safe-Area Protection.

Diagrams

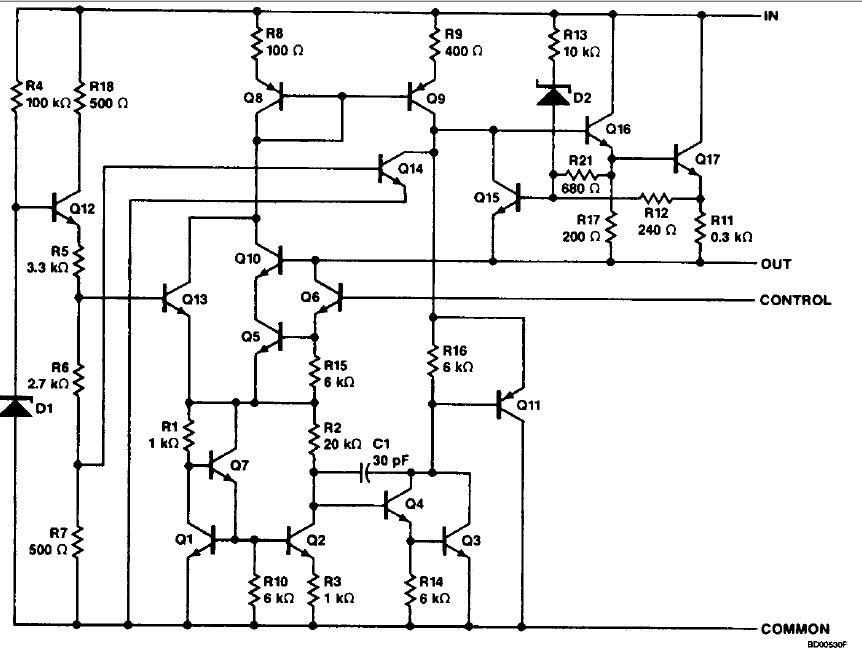

UA78GKM block diagram
